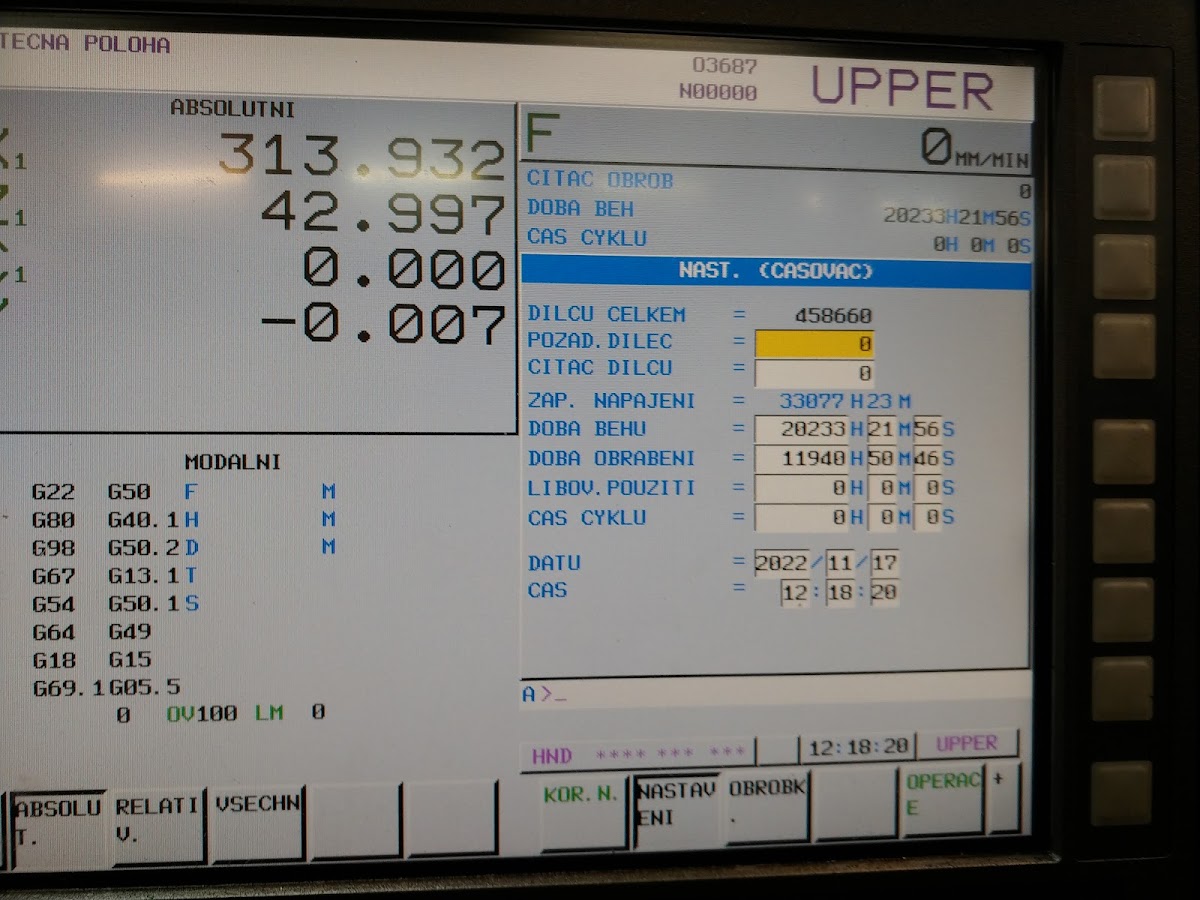

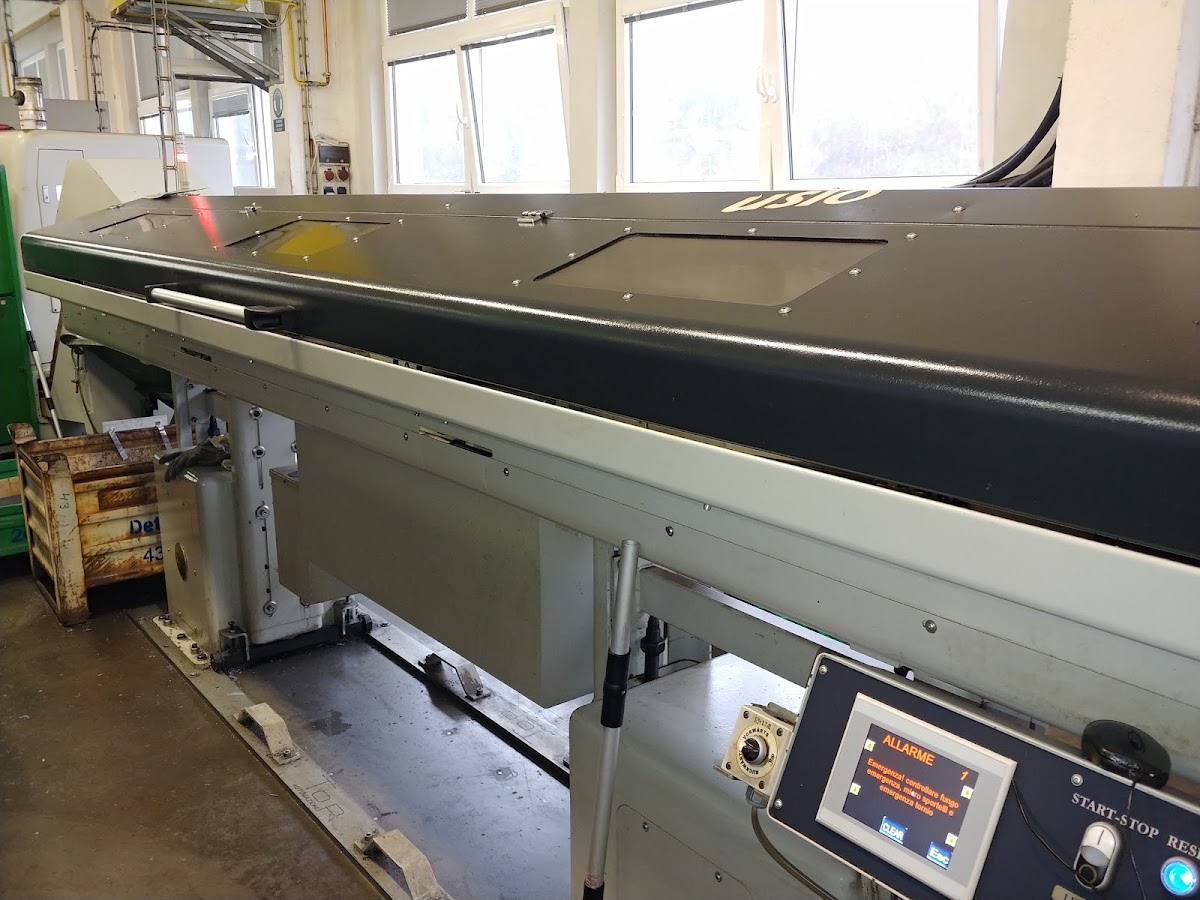

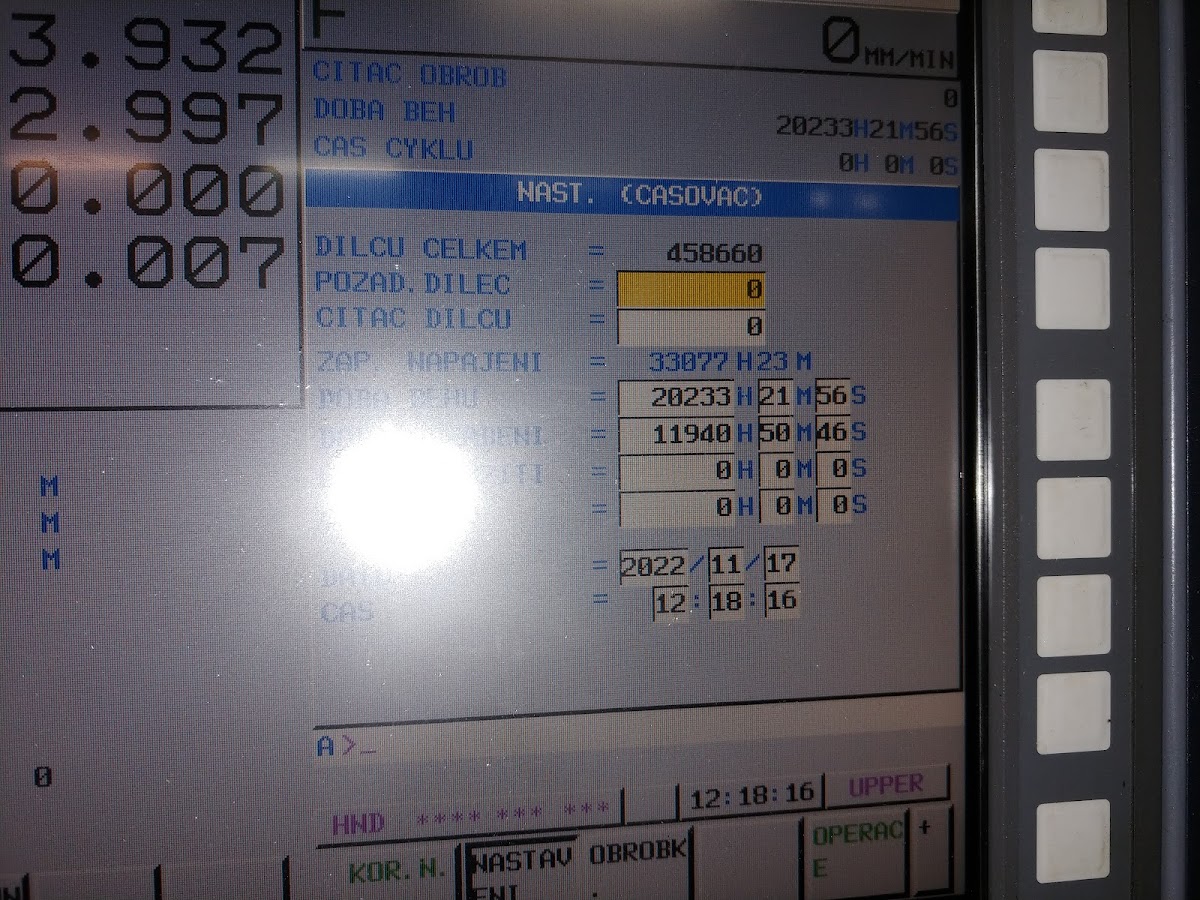

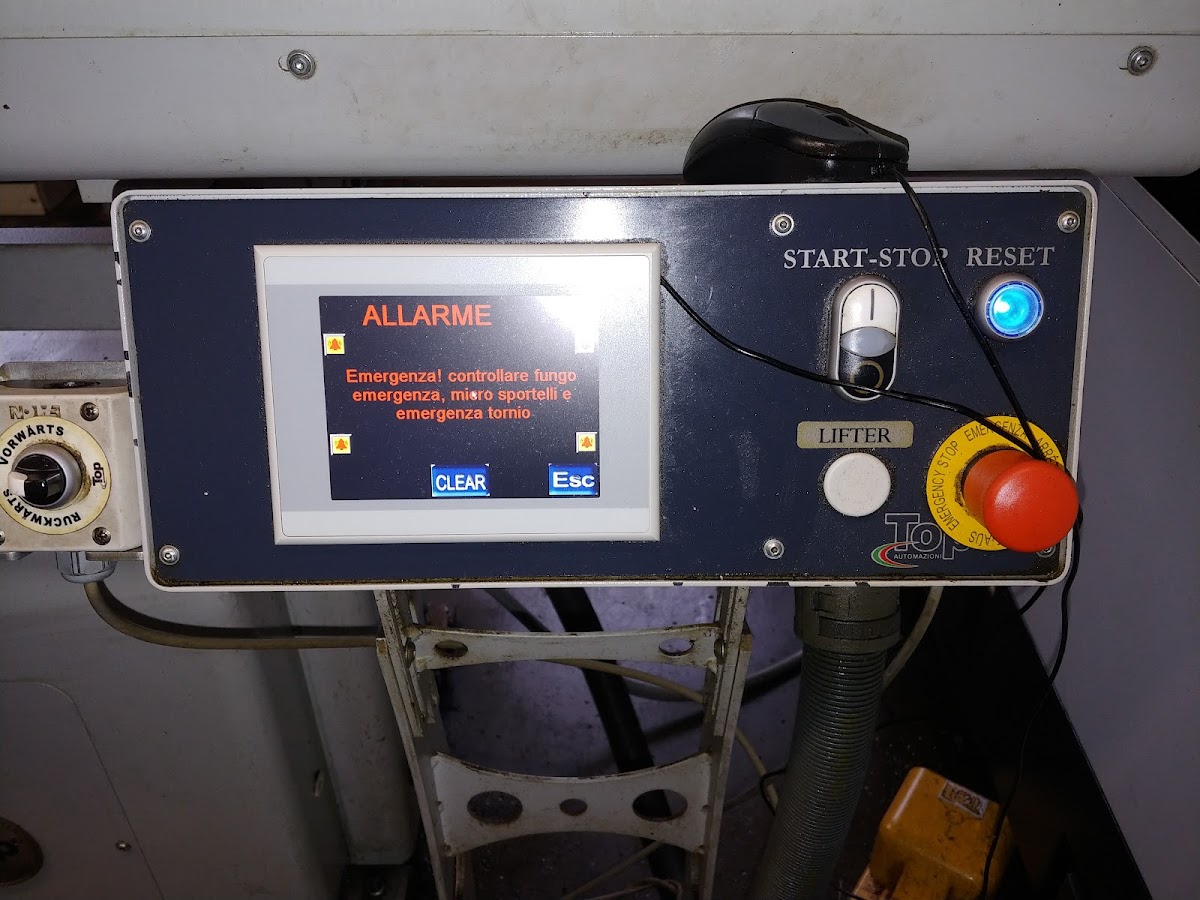

The machine is in good technical condition. Under under power, it is possible to inspect the machine anytime. The machine is equipped with an Italian feeder FUSION 350 from the company Automazioni with a length of 3000 mm. Worked approx. 12 thousand hours

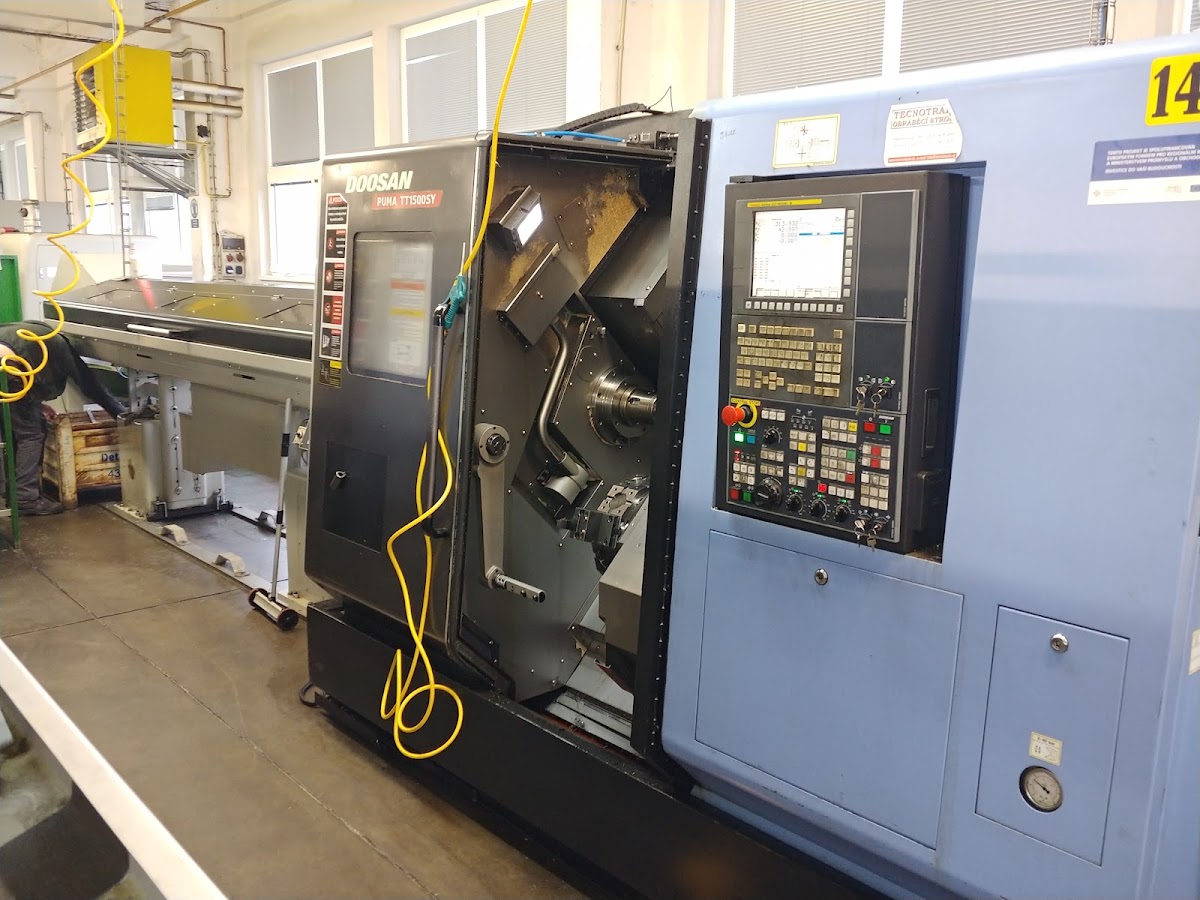

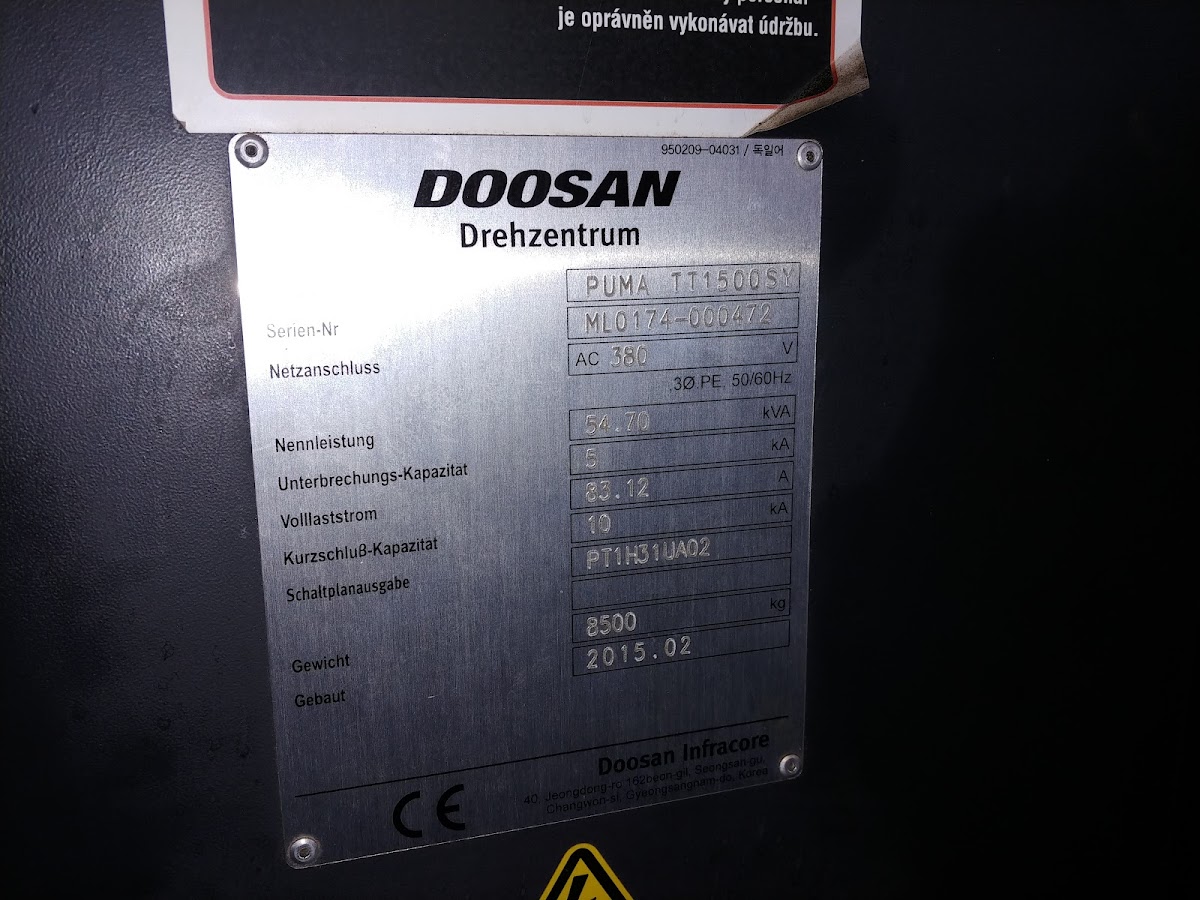

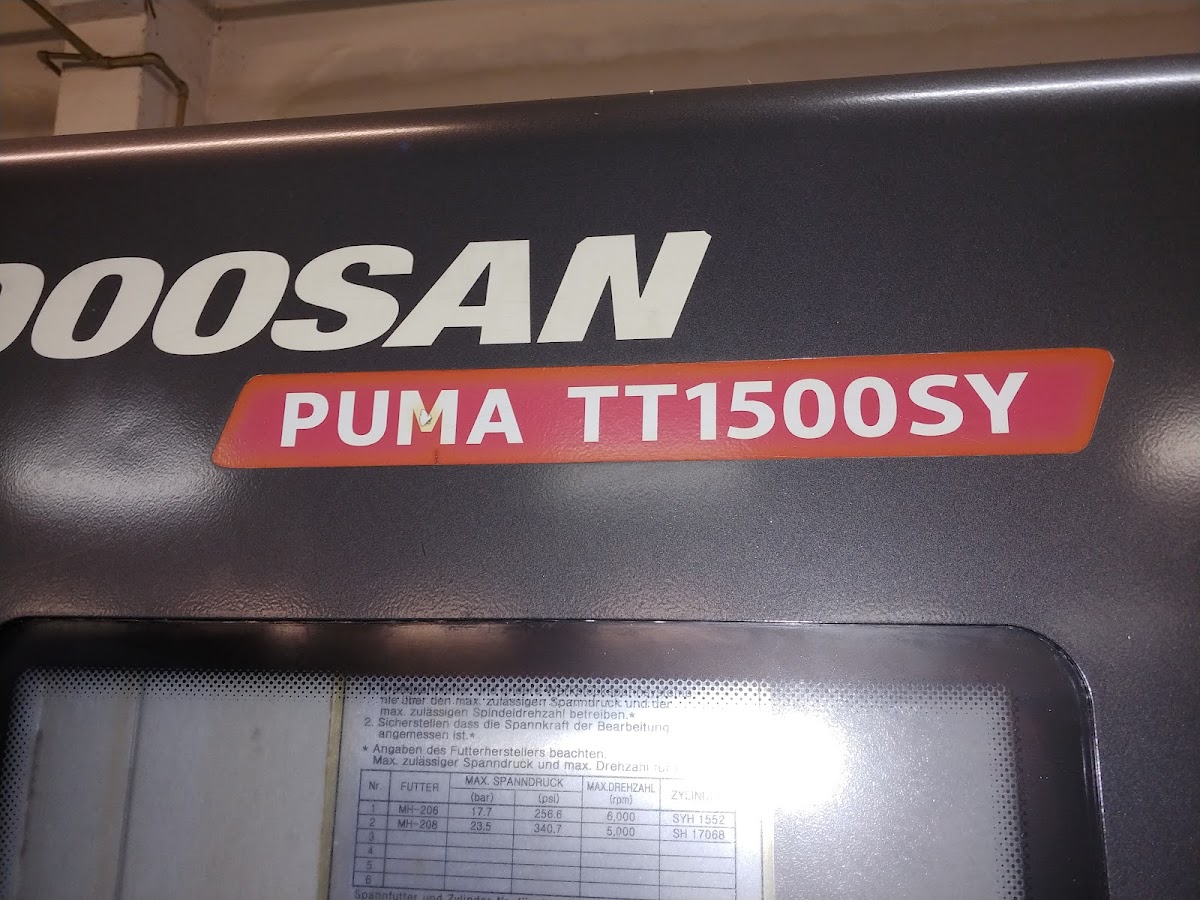

Producer ..... Doosan
Year manufacture/Year overhaul ..... 2015 / -

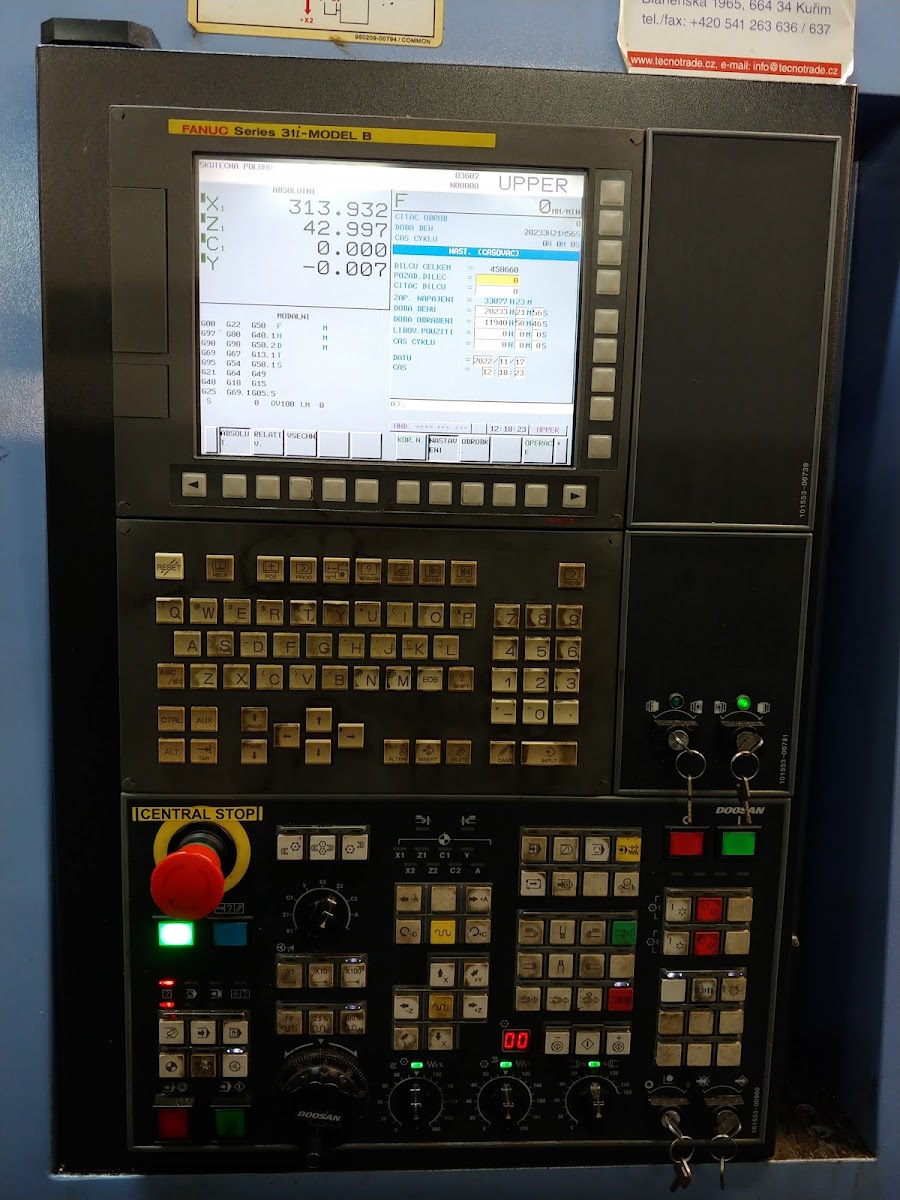

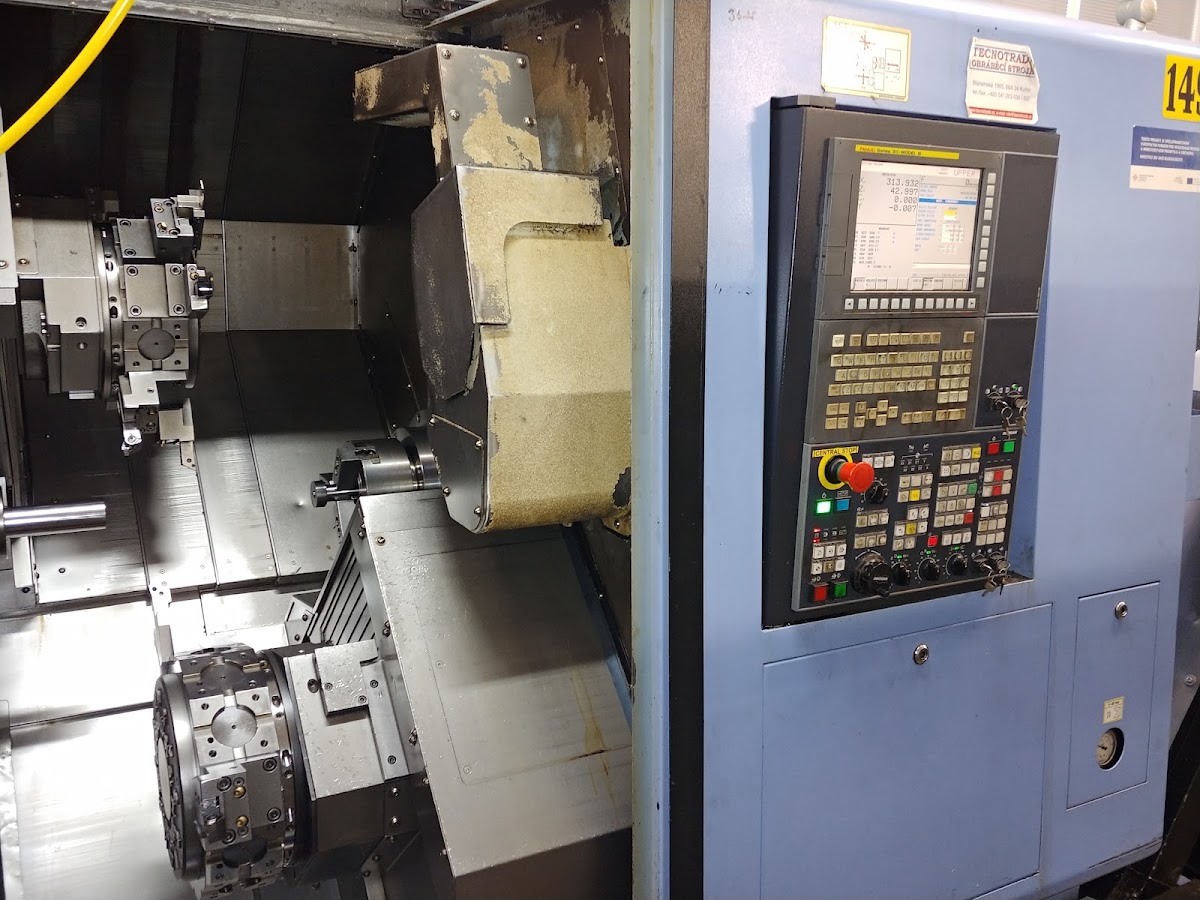

Control system Fanuc ..... Fanuc 31i
Turn table diameter ..... 230 mm
Turning lenght ..... 120 mm
Sloping bed
Y axis
Travel Y-axis ..... 100 mm

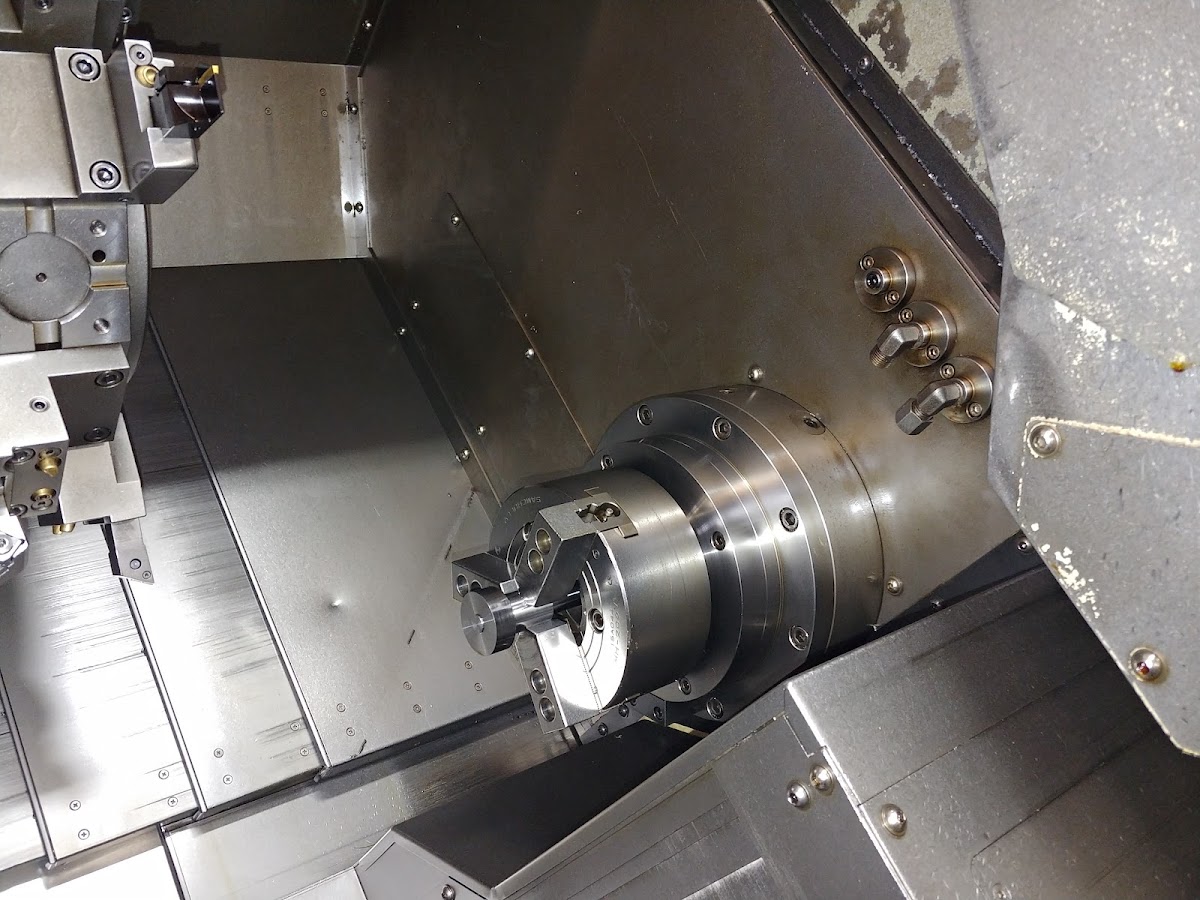

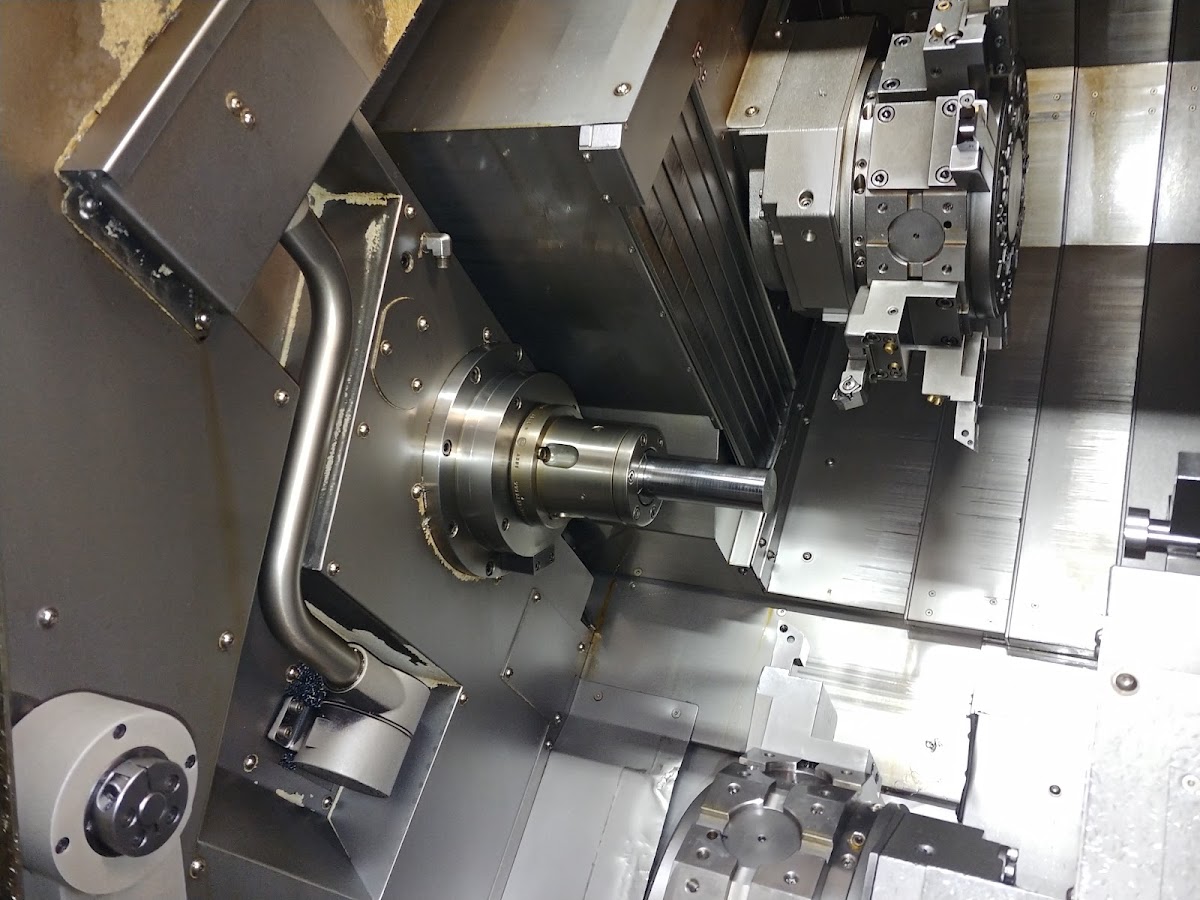

Counterspindle
Spindle bore ..... 51 mm
Driven Tools
Number of tool positions (driven) ..... 24
Swing over bed ..... 300 mm
Spindle speed ..... 60 - 6000 /min.
Number of tool positions (driven) ..... 24/12
Number of driven axes ..... 8
Axis C ..... 360 °
Travel X-axis ..... 165 mm
Travel Z-axis ..... 470 mm
Max. weight of workpiece ..... 70 kg
Machine dimensions l x w x h ..... 3500x2080x2070 mm
Machine weight ..... 8500 kg

Control system Fanuc 31i
Turn table diameter 230 mm
Turning lenght 120 mm
Sloping bed Yes
Spindle bore 51 mm

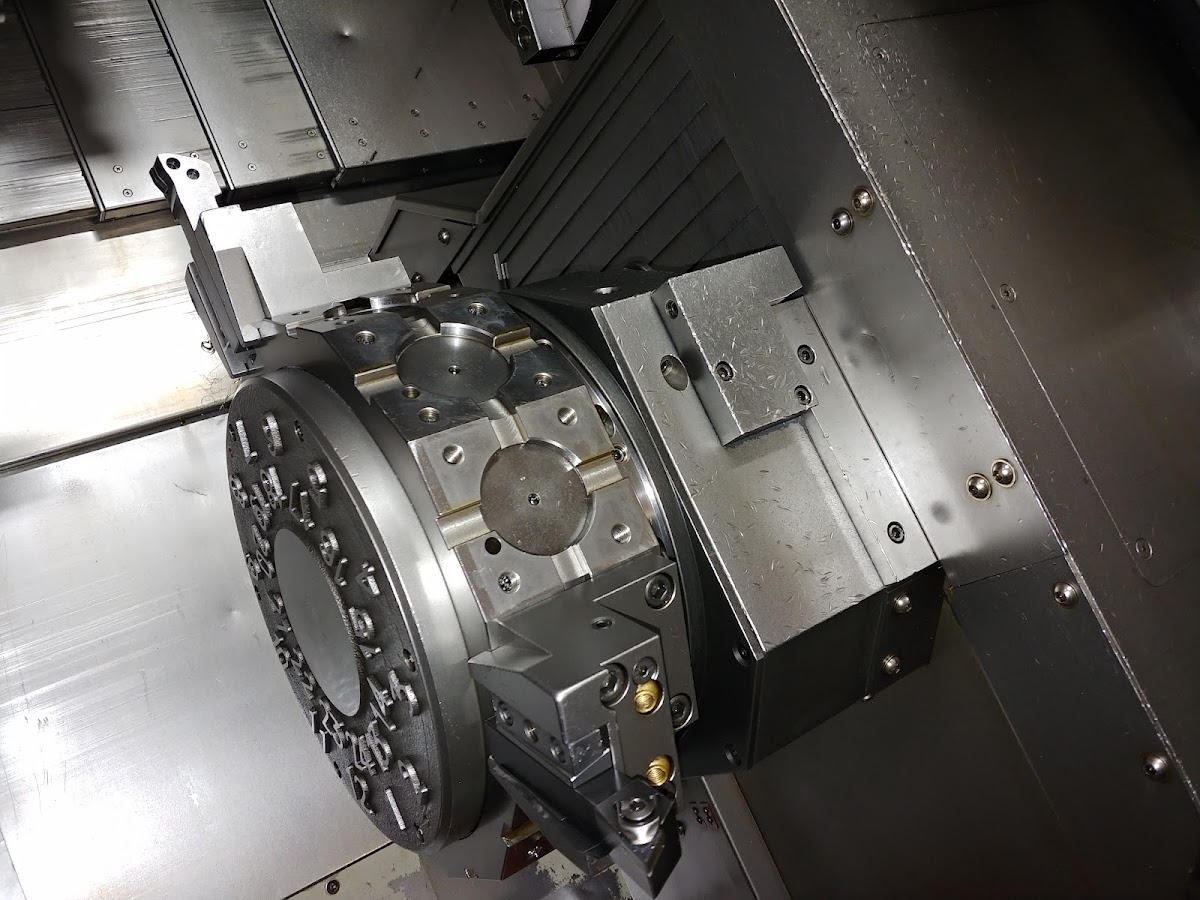

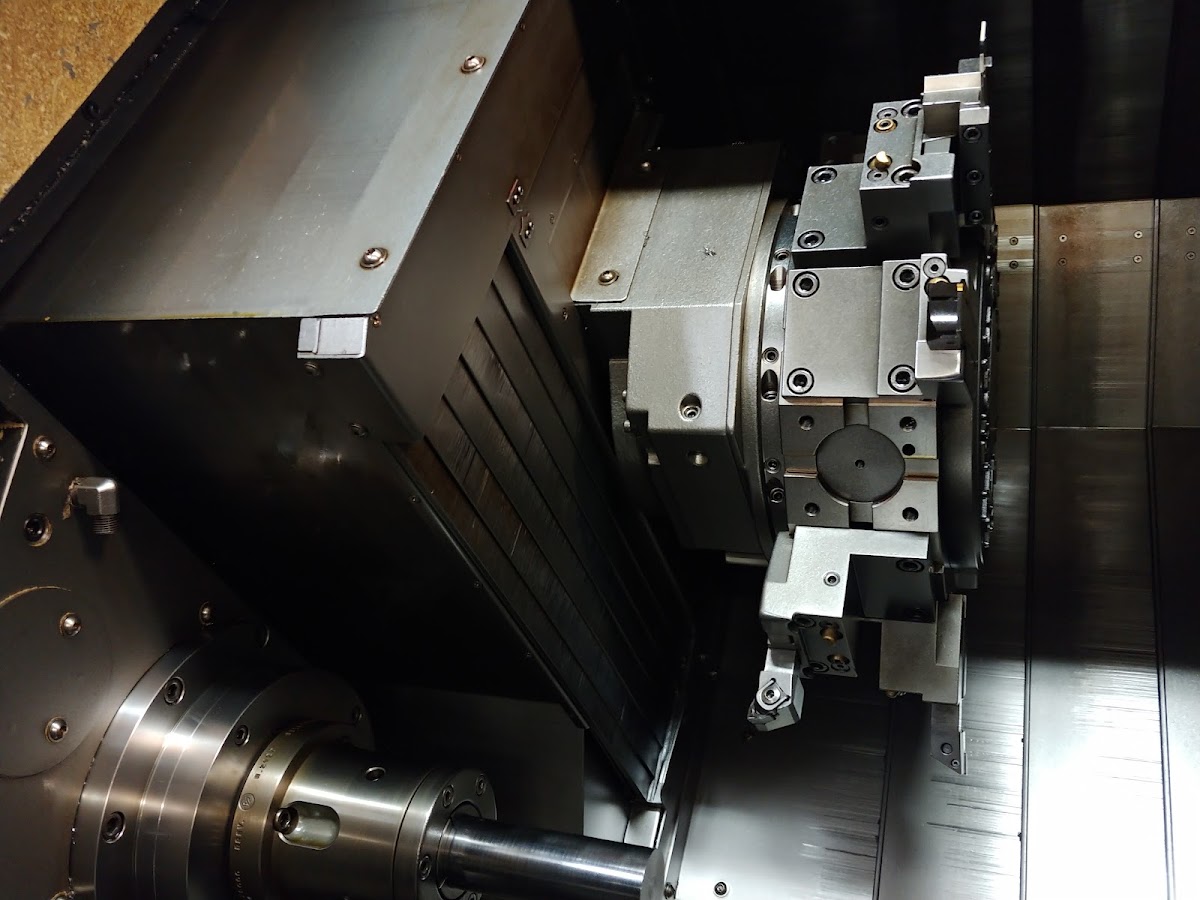

Turret head Yes

Dismantling Included
Loading Included
Inspection times By appoitment

Country: Czech Republic
Address: No street selected
