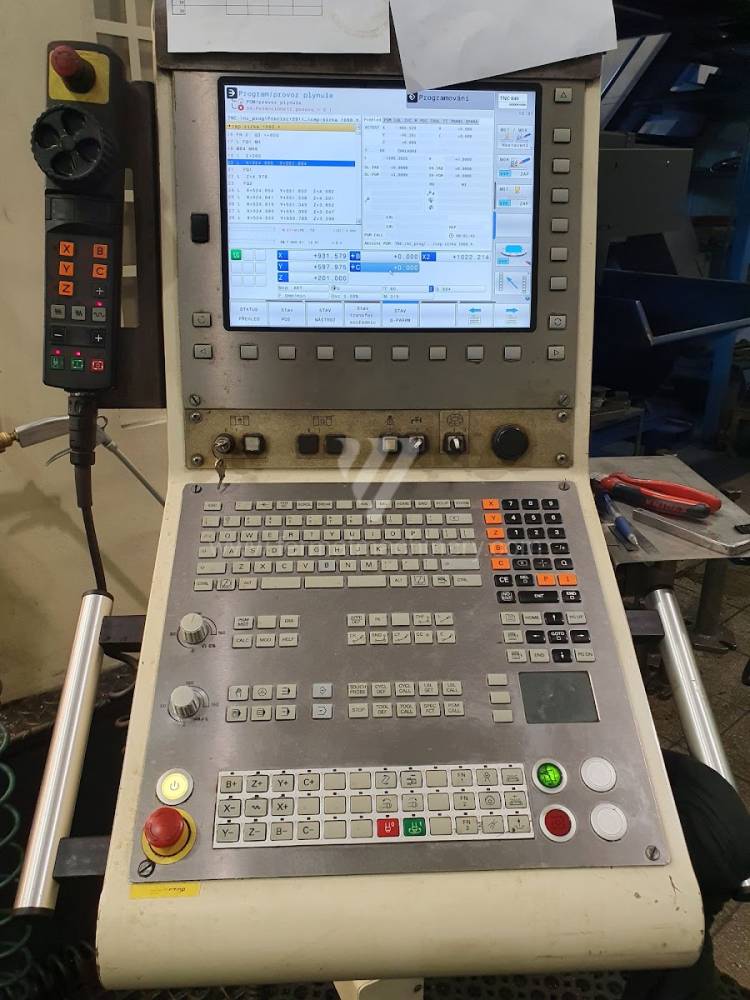

| Sistem de control Heidenhain | TNC 530 |

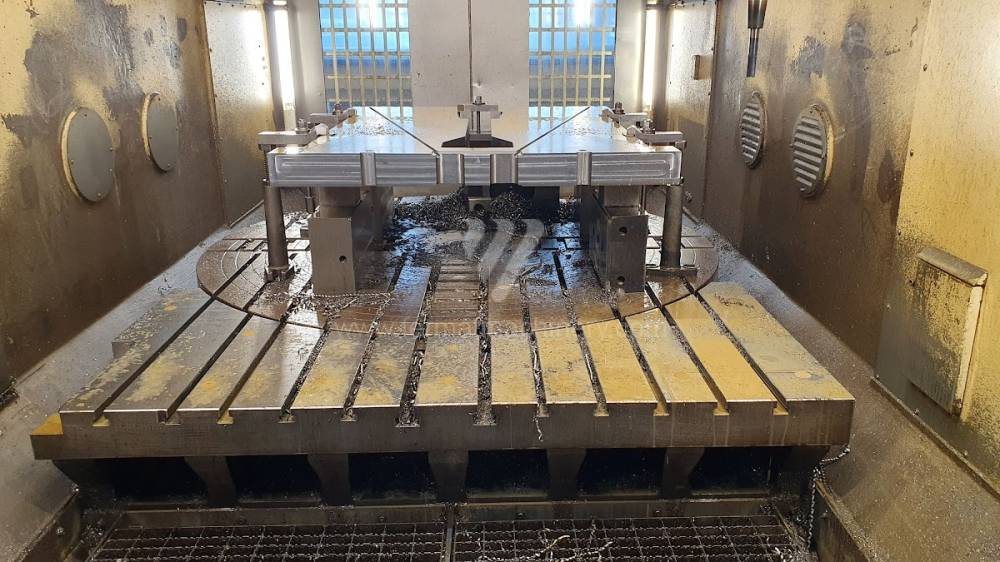

| Suprafața de prindere/fixare a mesei | 1800 (1600x2500) mm |
| Deplasarea pe axa X | 2300 mm |
| Deplasarea pe axa Y | 1400 mm |
| Deplasarea pe axa Z | 1050 mm |
| Viteza axului | 10 - 10000 /min. |
| Numărul axelor acționate | 5 |
| Răcire prin ax | da |
| Presiunea de răcire | 40 bar |
| Conicitatea axului | HSK-A100 . |
| Greutatea maximă a piesei de lucru | 10000/5000 kg |
| Cuplul maxim al axului | 130/150 Nm |
| Axa C | 360 ° |
| Axa B | ±110 ° |
| Avansul rapid | 50 m/min |

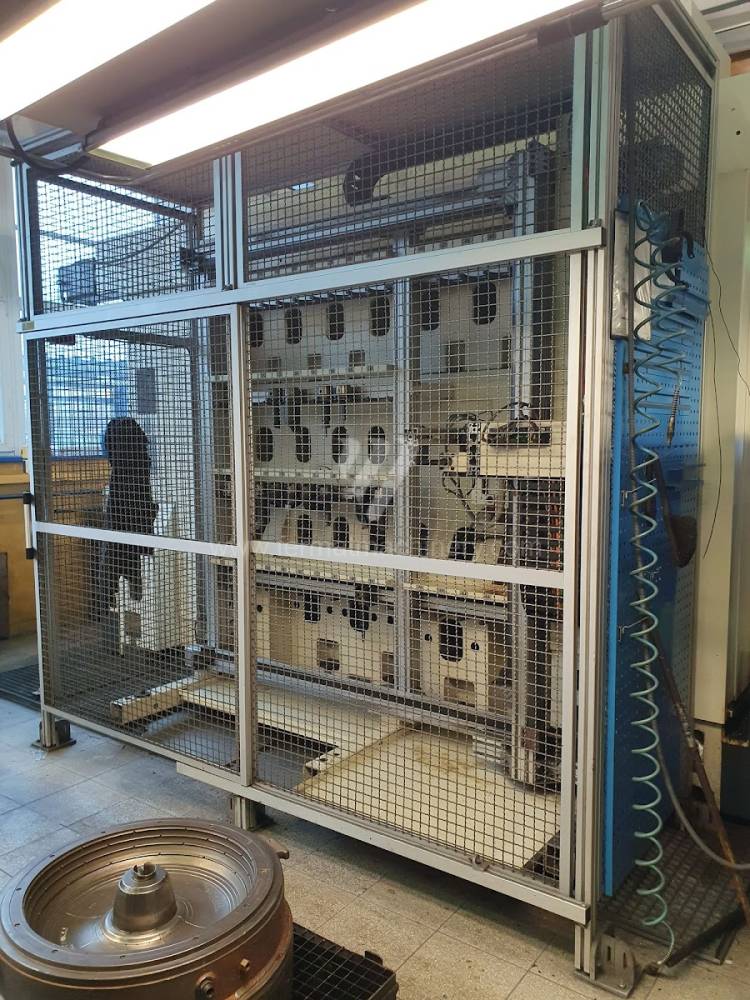

| Magazia de scule | da |

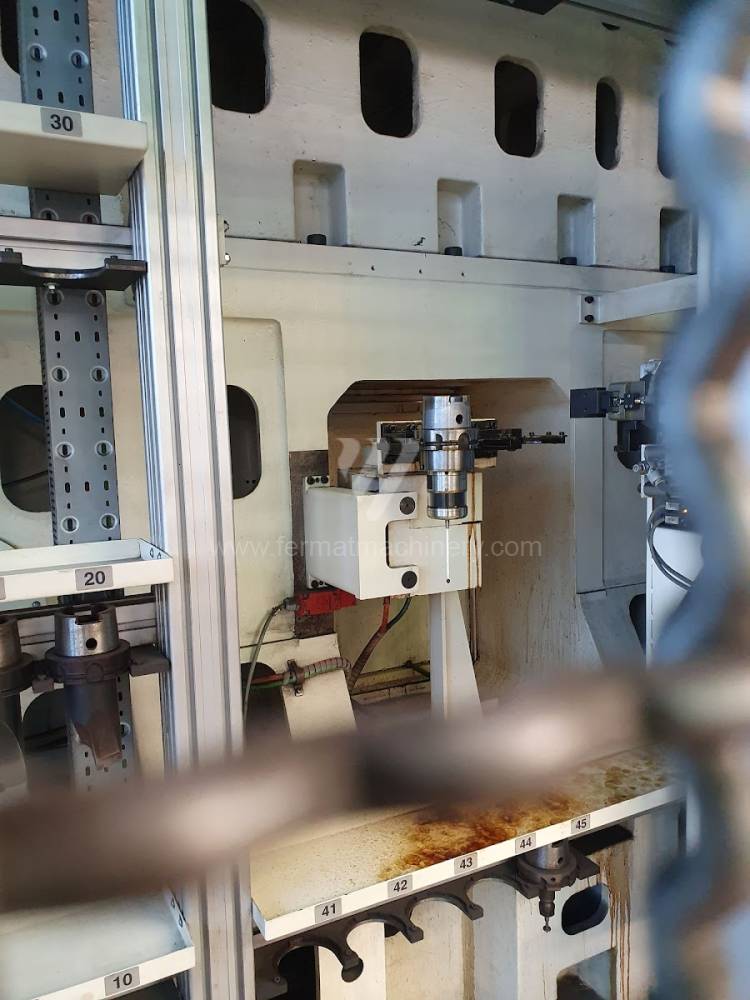

| Numărul de lăcașuri in magazia de scule | 48 |
| Geutatea mașinii | 32000 kg |
| Dimensiunile mașinii L x l x Î | 6640x6000x4800 mm |
The machine is in good technical condition, with the possibility of testing under power.

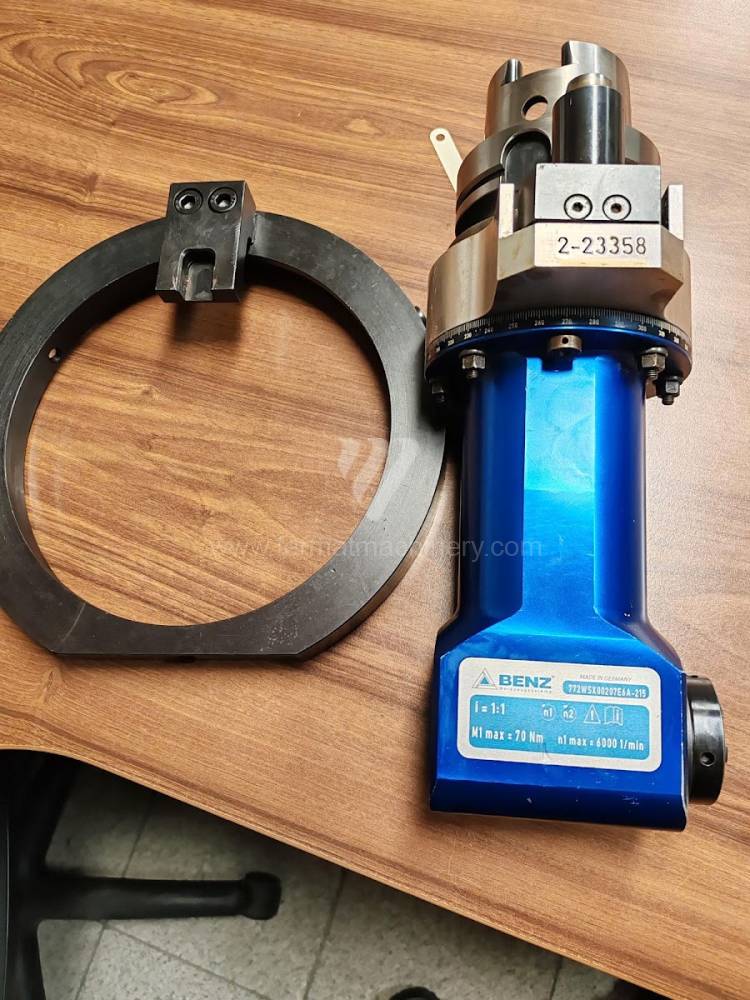

Accessories: workpiece and tool probe.

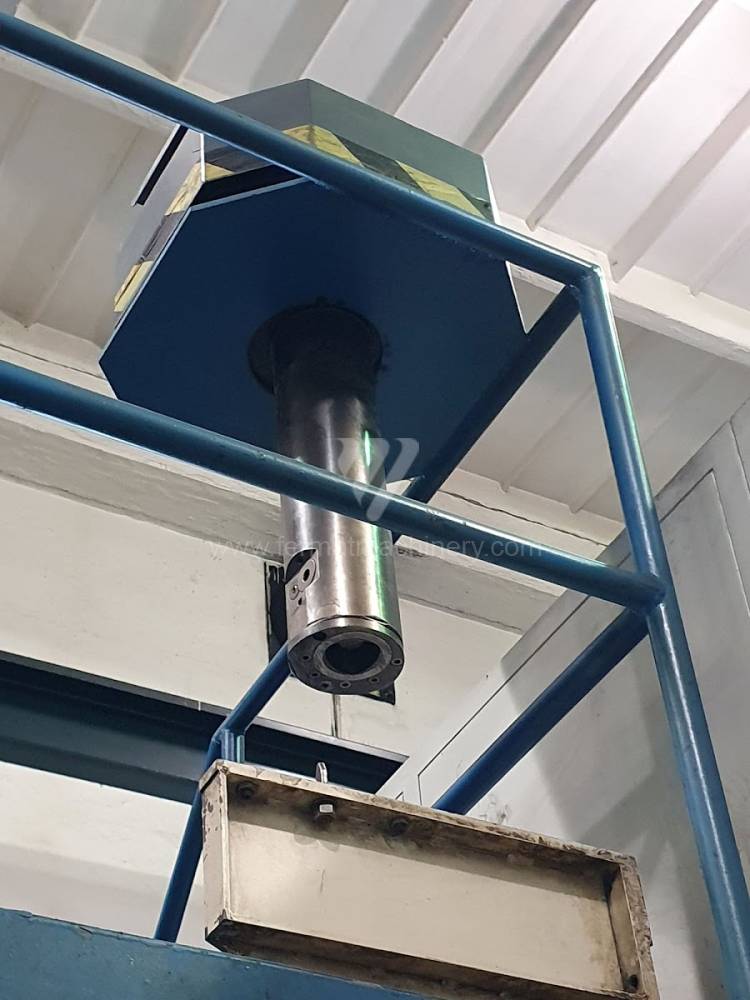

New spindle installed in 2024.

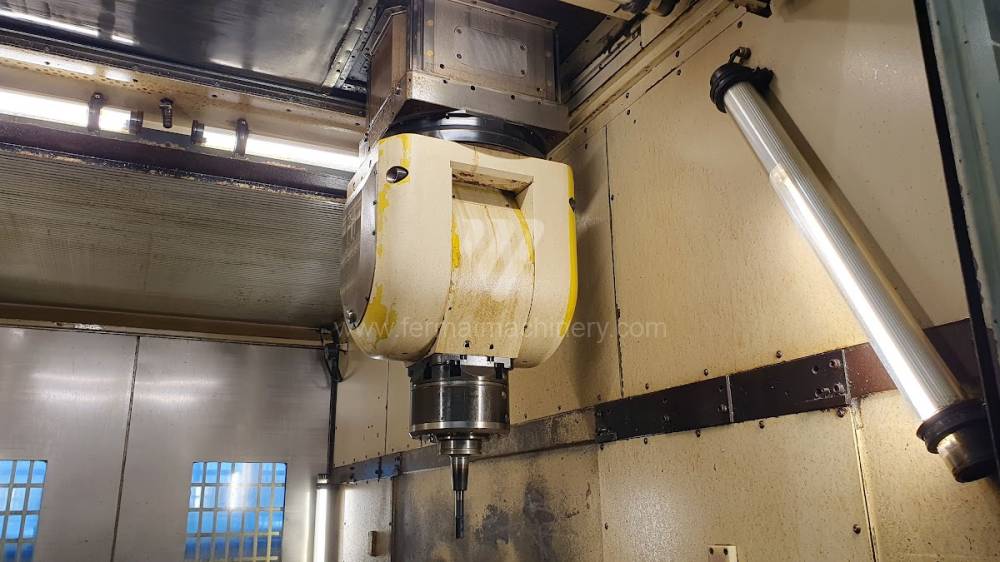

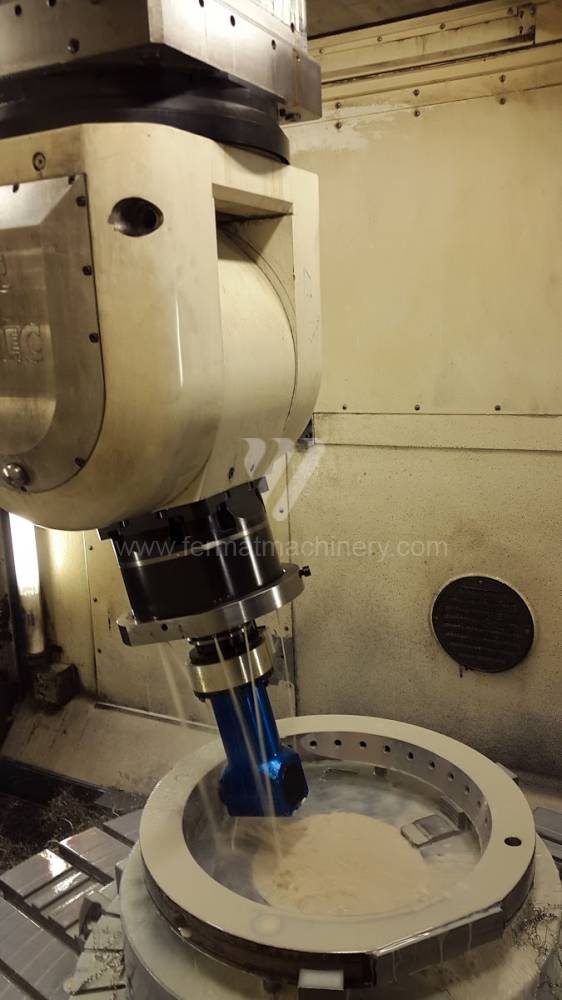

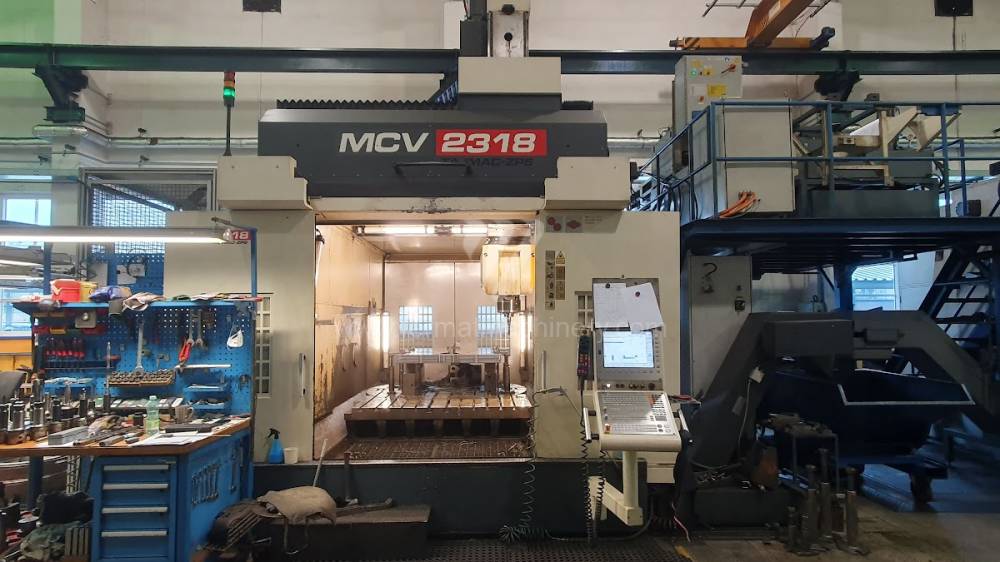

The TAJMAC-ZPS MCV 2318 vertical machining center represents a robust solution for precise and high-performance milling of large workpieces. Thanks to its five-axis control and high-pressure internal cooling, this machine is ideal for demanding technological operations in toolrooms as well as in series production where maximum efficiency and top surface quality are required. The modern Heidenhain system ensures intuitive control and high reliability when machining complex shapes, significantly increasing the productivity of your operations.
