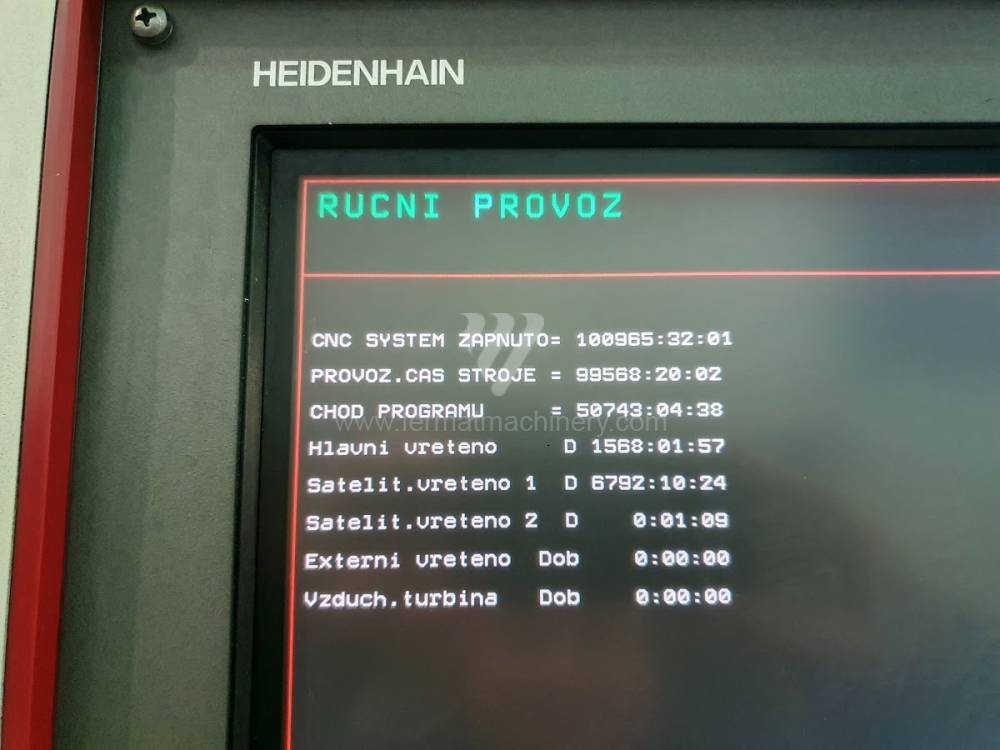

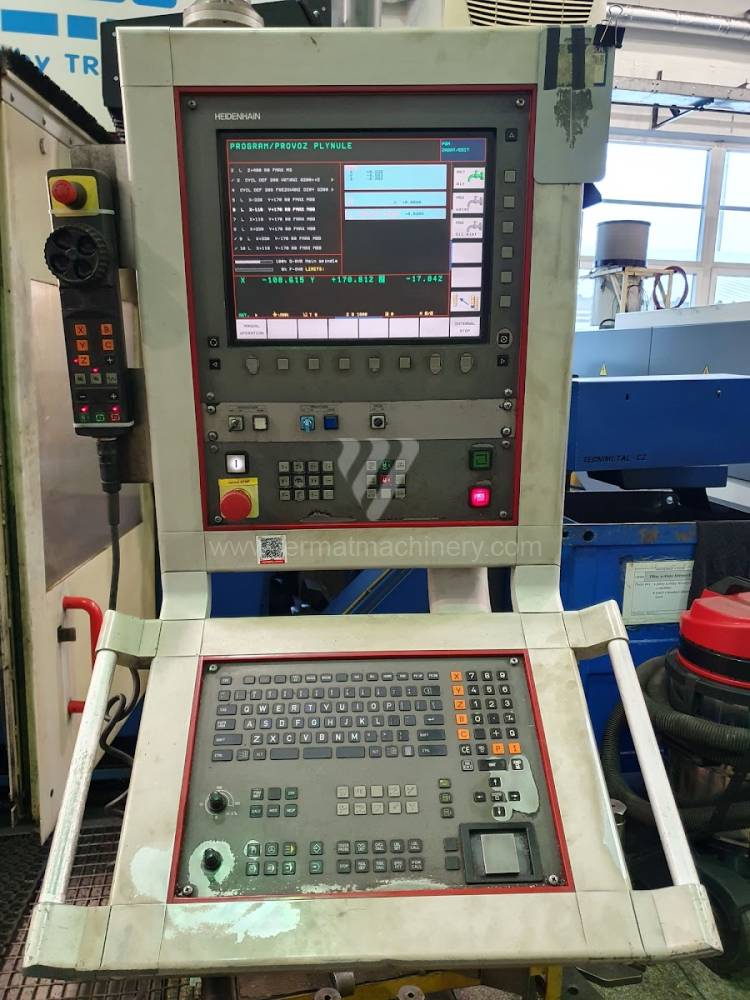

| Sistem de control Heidenhain | TNC 530 |
| Suprafața de prindere/fixare a mesei | 2300 x 1600 mm |
| Deplasarea pe axa X | 2300 mm |
| Deplasarea pe axa Y | 1200 mm |
| Deplasarea pe axa Z | 800 mm |
| Viteza axului | 30 - 12000 /min. |
| Numărul axelor acționate | 5 |
| Răcire prin ax | da |
| Presiunea de răcire | 20 bar |
| Conicitatea axului | HSK 100 . |
| Cuplul maxim al axului | 200 Nm |
| Magazia de scule | da |
| Numărul de lăcașuri in magazia de scule | 10 |
| Axa C | ±185 ° |
| Axa B | + 60/-90 ° |
| Avansul rapid | 30 m/min |
| Geutatea mașinii | 23000 kg |
| Dimensiunile mașinii L x l x Î | 4800 x 4750 x 4660 mm |
Machine is in good technical condition, testing under power is possible.

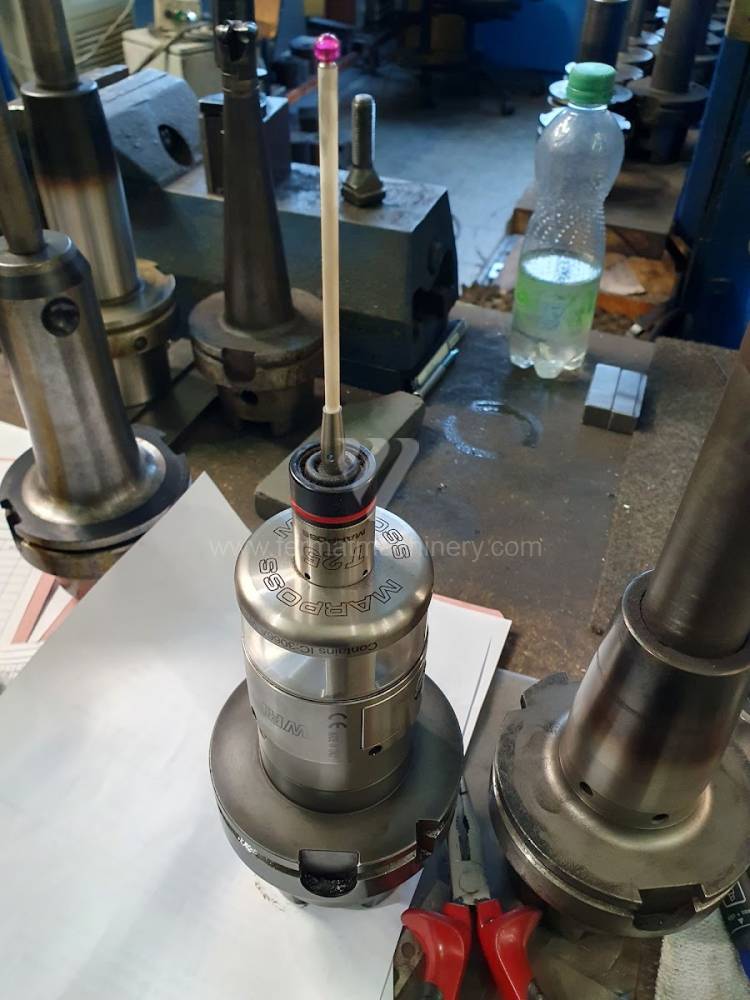

Accessories: workpiece probe, high-frequency universal spindle IMT 8kW / 30,000 rpm.

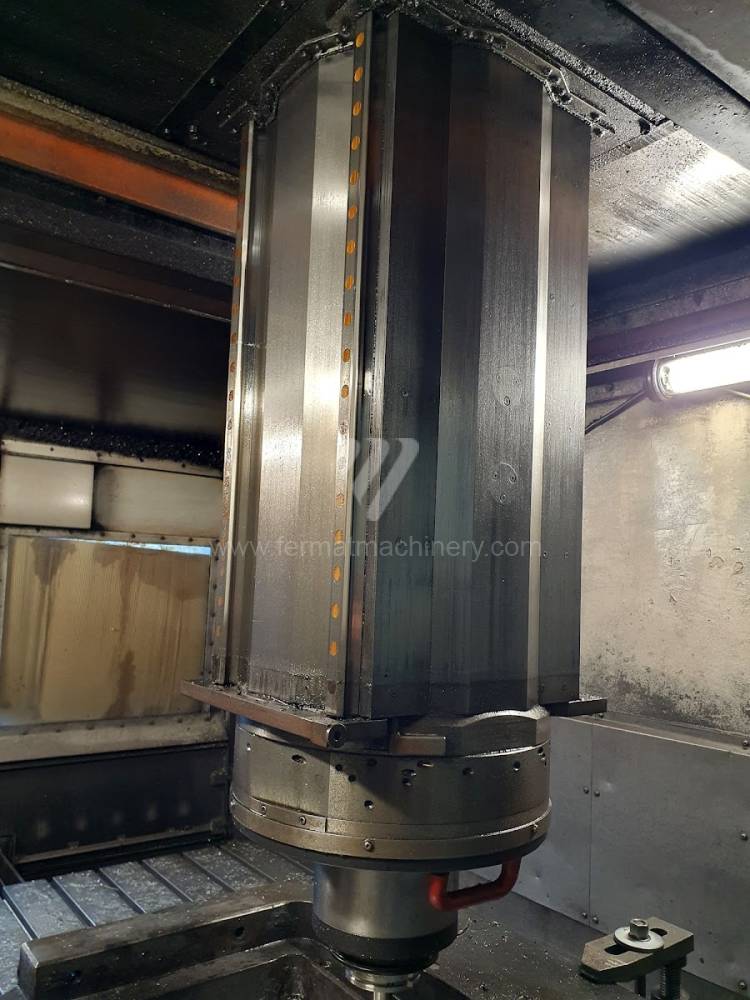

Note: New spindle installed in 2024.

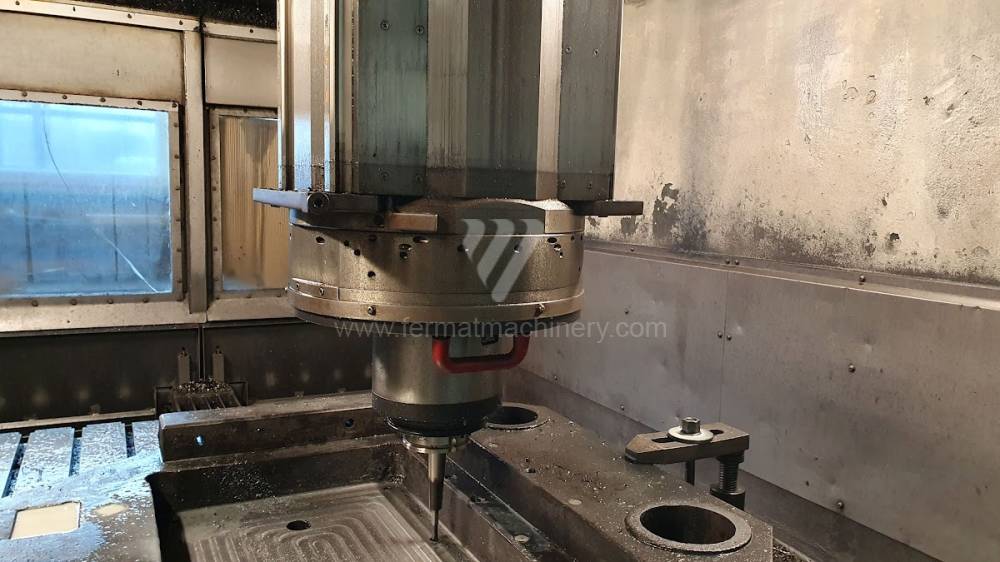

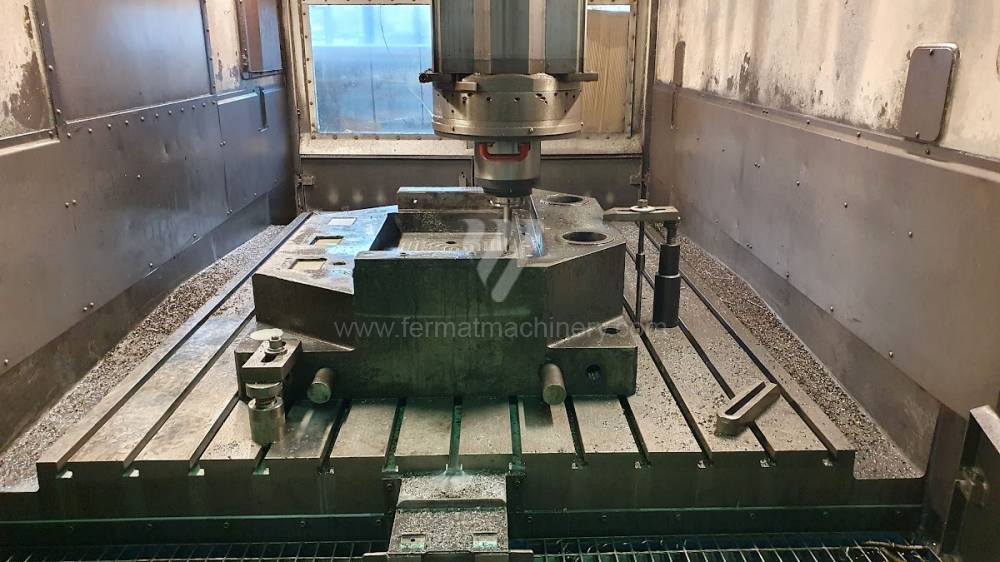

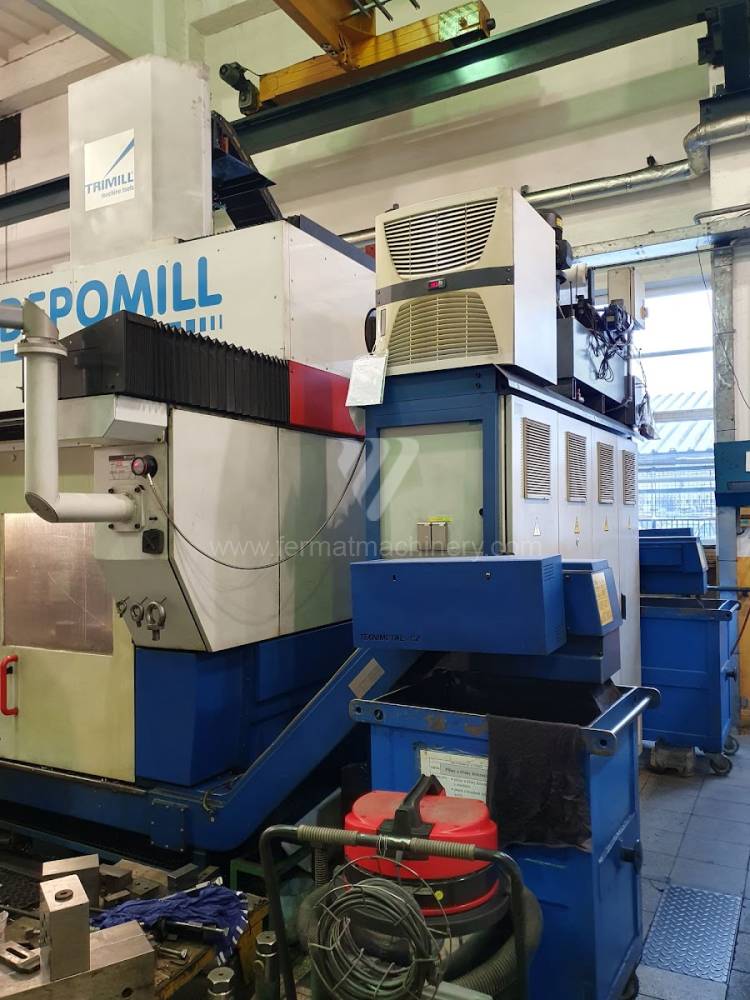

The TRIMILL Depomill CUT 2012 vertical machining center represents a high-performance solution for precise 5-axis milling of large and complex workpieces. Equipped with a modern Heidenhain control system and efficient through-spindle cooling, this machine is an ideal choice for demanding tool shops and mold making, where high surface quality and machining dynamics are prioritized. The robust gantry-type construction ensures excellent stability and precision even during long-term professional operation.
