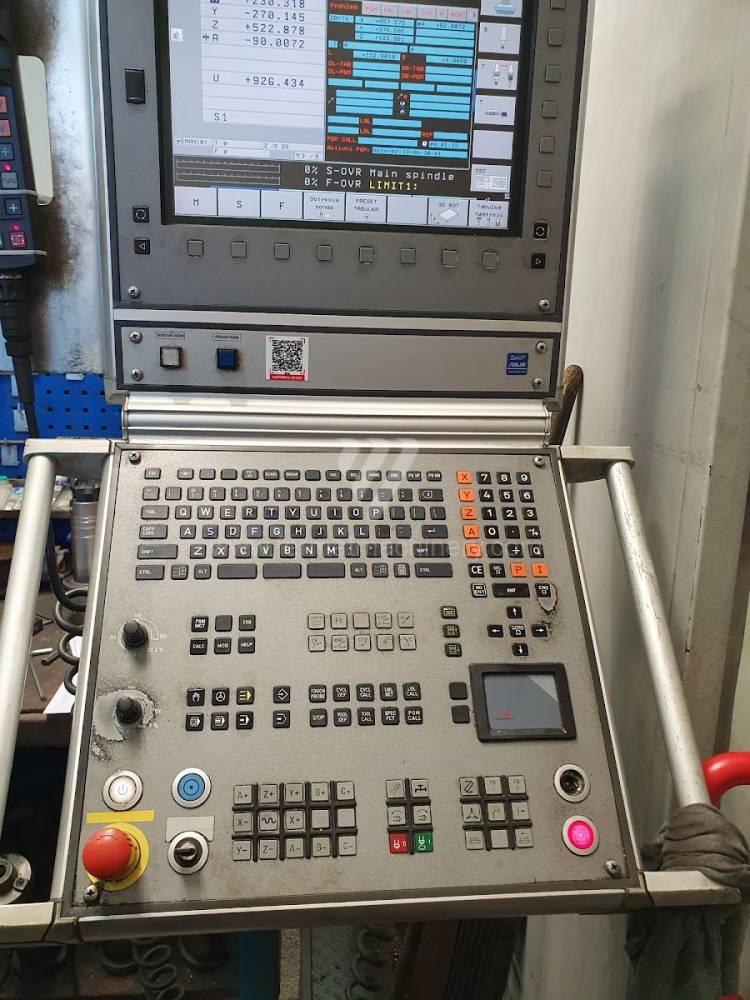

| Sistem de control Heidenhain | TNC 530 |
| Suprafața de prindere/fixare a mesei | 2000x1750 mm |
| Deplasarea pe axa X | 1600 mm |
| Deplasarea pe axa Y | 1200 mm |
| Deplasarea pe axa Z | 800 mm |
| Viteza axului | 10 - 10000 /min. |
| Numărul axelor acționate | 5 |
| Răcire prin ax | da |
| Presiunea de răcire | 50 bar |
| Conicitatea axului | HSK-A100 . |
| Greutatea maximă a piesei de lucru | 7000 kg |
| Cuplul maxim al axului | 195 Nm |
| Axa C | ±182 ° |
| Viteza de apropiere | -2 / +92 ° |
| Avansul rapid | 30 m/min |
| Magazia de scule | da |
| Numărul de lăcașuri in magazia de scule | 12 |
| Geutatea mașinii | 43000 kg |
| Dimensiunile mașinii L x l x Î | 7430x5800x3590 mm |
The machine is in good technical condition, with the possibility of testing under power.

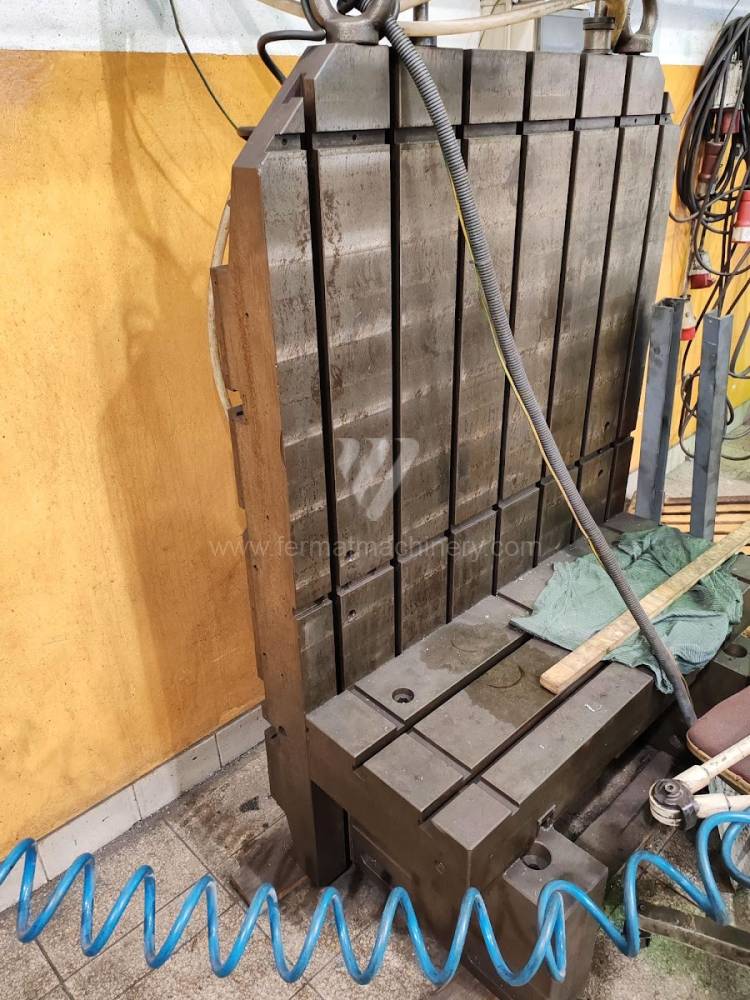

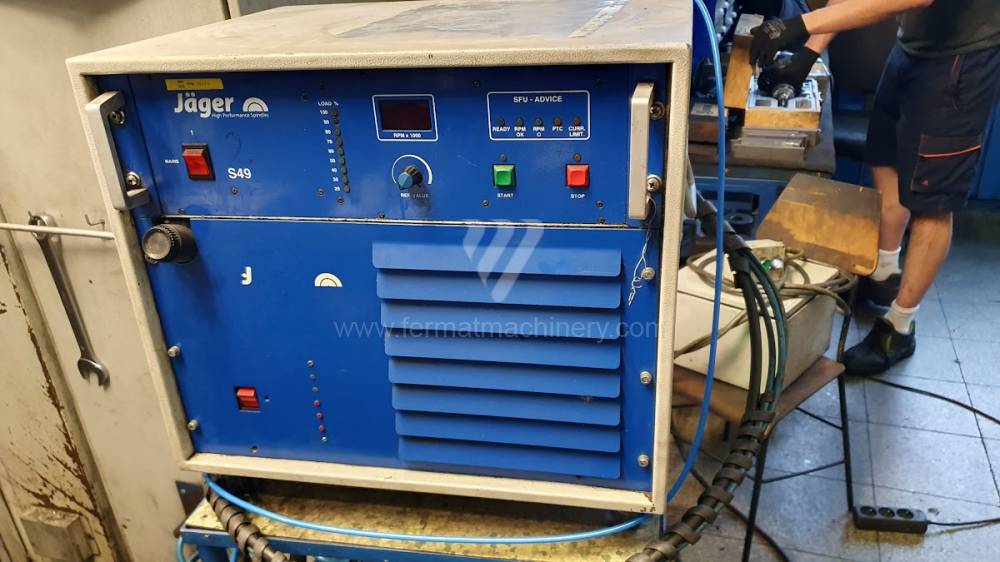

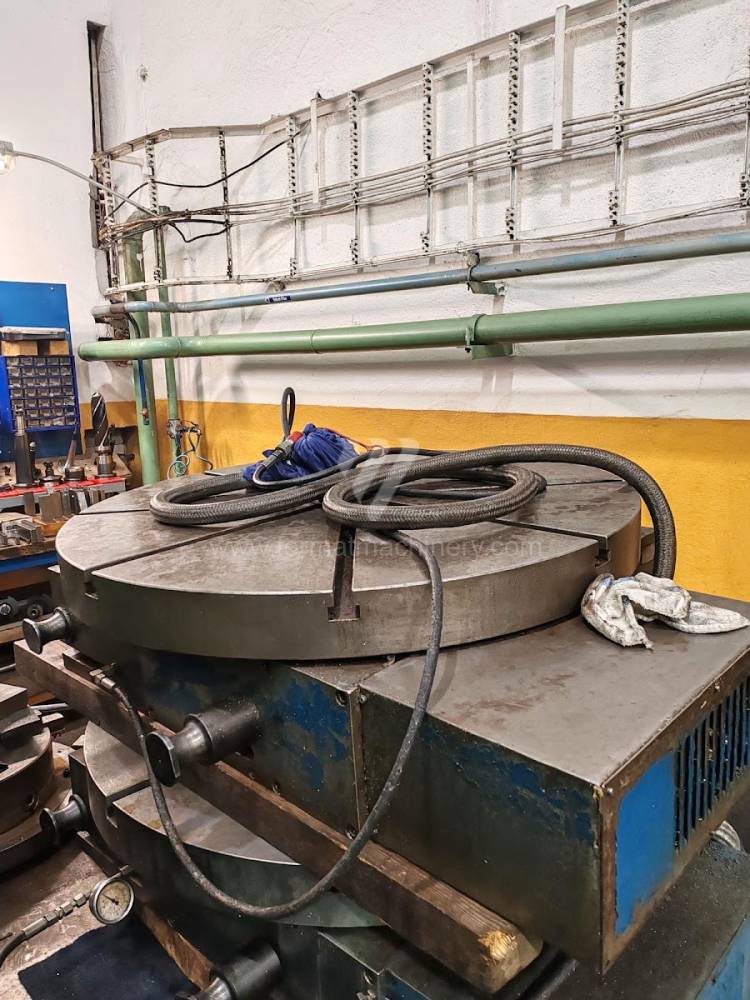

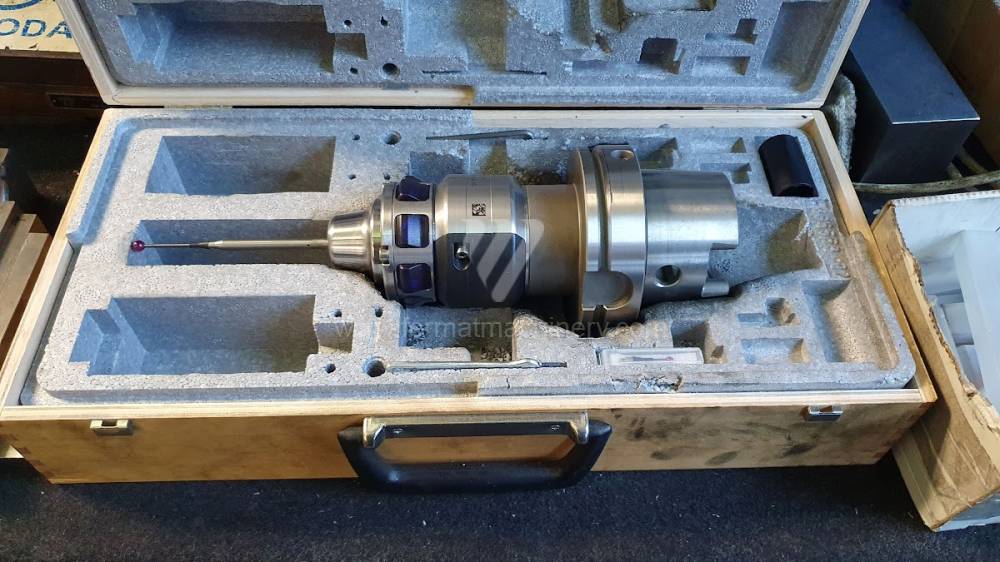

Accessories: Workpiece probe, Jäger electric spindle (60,000 rpm), additional rotary table ISN 1000 CNC V, angle plates.

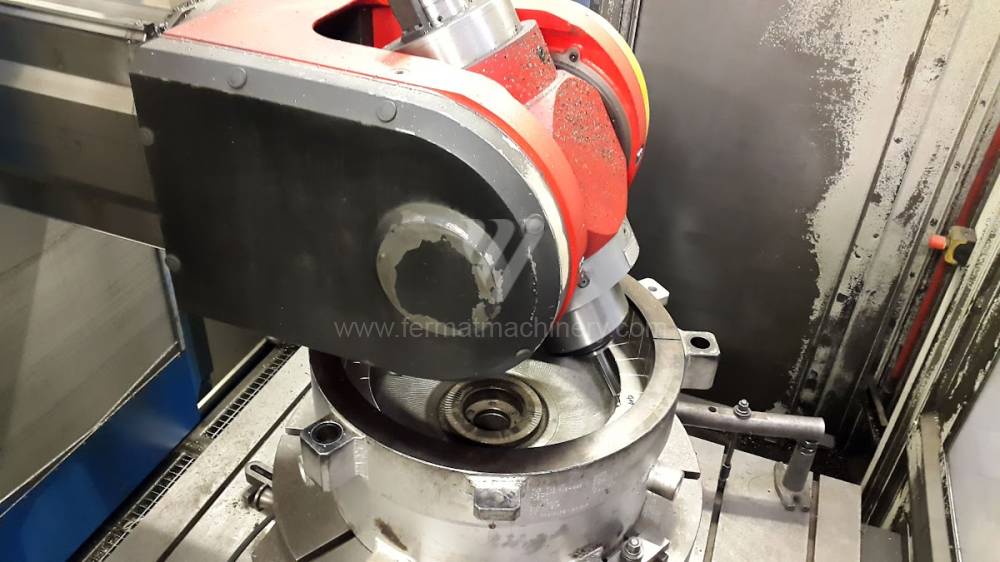

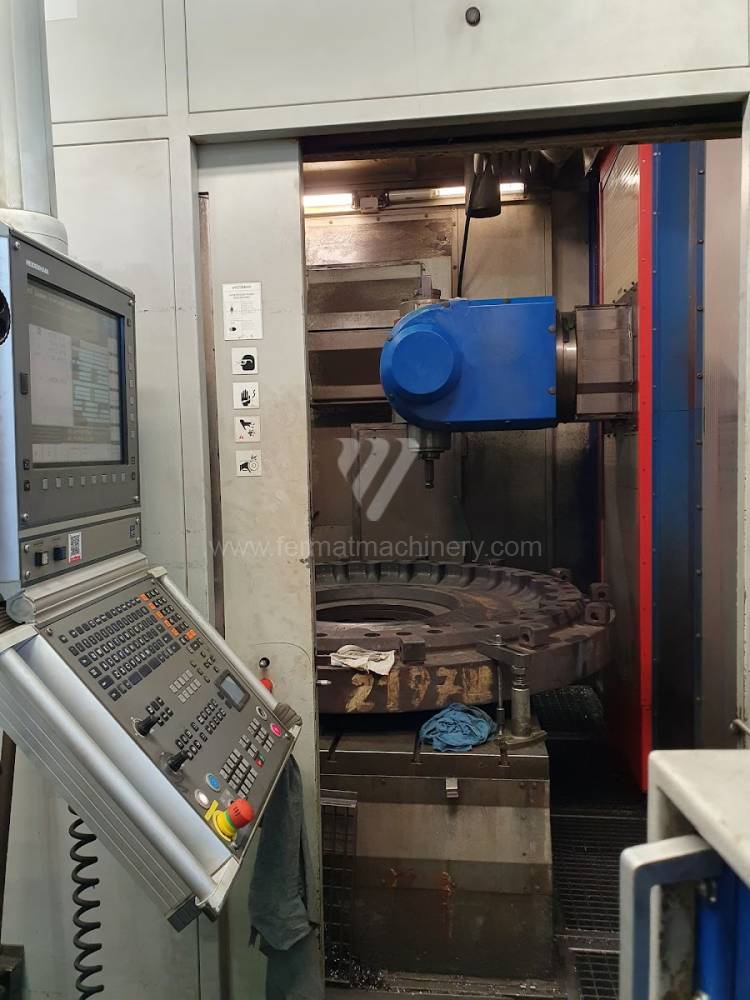

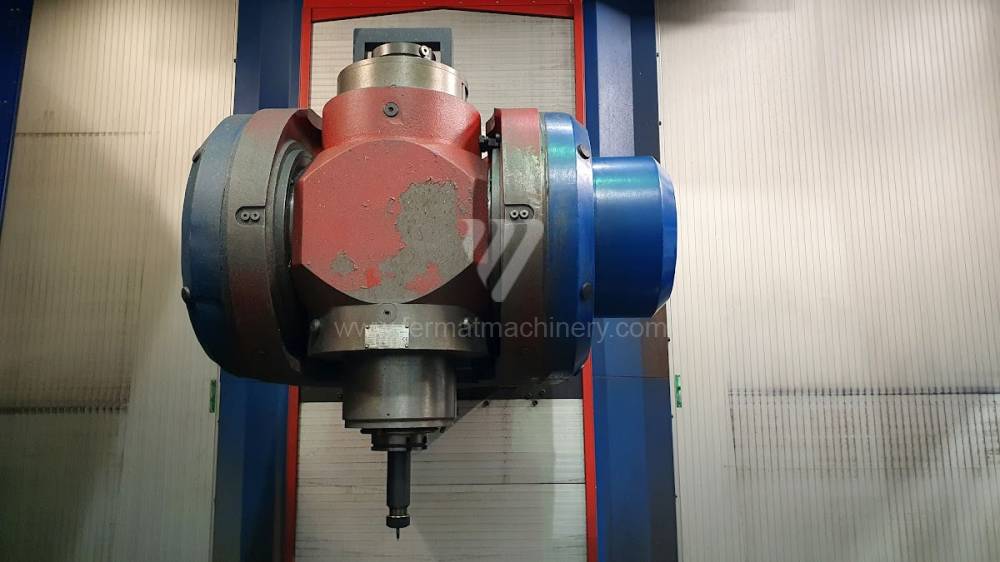

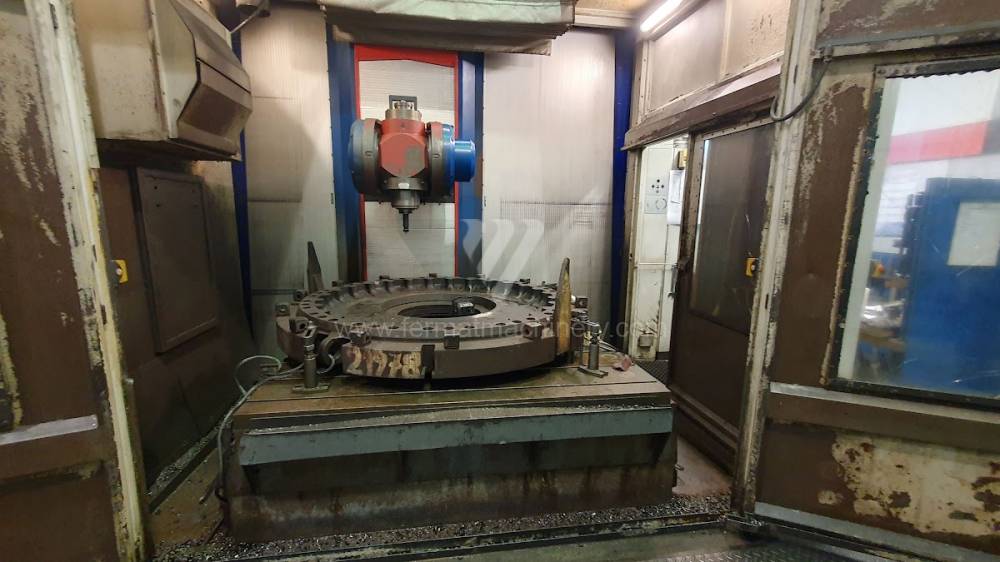

The TRIMILL HF 1612 vertical machining center represents a highly efficient solution for precise 5-axis milling of geometrically complex workpieces. Thanks to the advanced Heidenhain control system and integrated high-pressure through-spindle cooling, this machine is ideal for tool shops and operations requiring maximum stability during the machining of molds or dies. The machine's design ensures excellent dynamics and rigidity, making it a reliable partner for demanding industrial applications and complex production.
