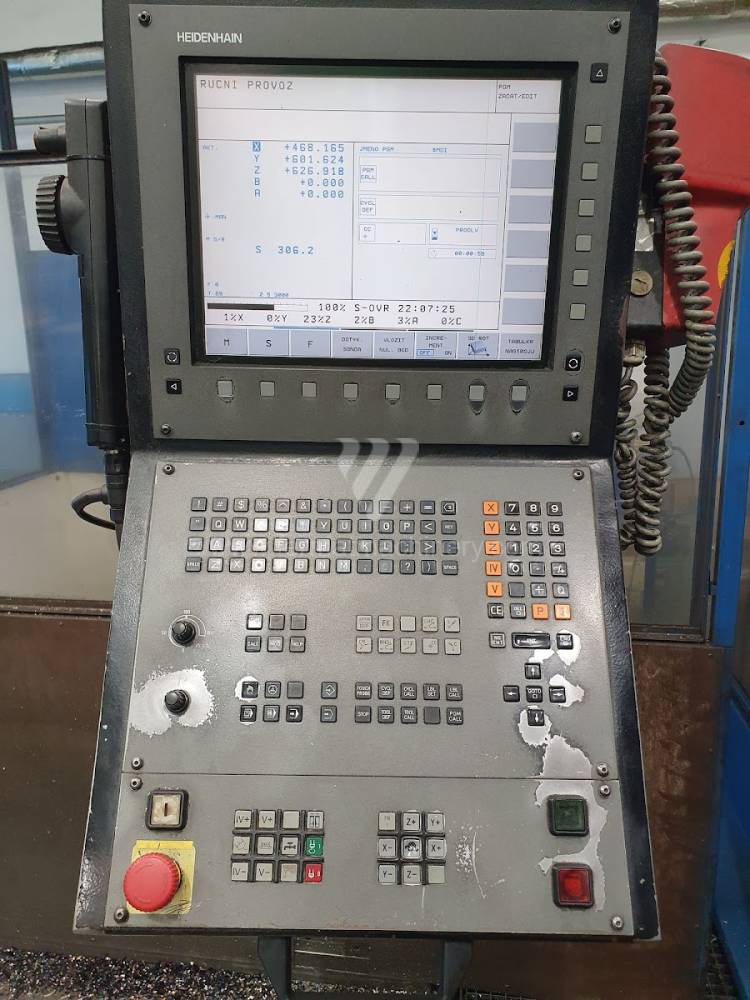

| Steuerung Heidenhain | TNC 530 |
| Die Abmessungen des Desktop | 3000x1250 mm |
| X Weg | 3000 mm |
| Y Weg | 1000 mm |
| Z Weg | 1400 mm |
| Spindeldrehzahl | 10 - 5000 /min. |
| Max. Tischbelastung | 7000 kg |
| Spindelkegel | ISO 50 . |
| Werkzeugmagazin | ja |
| Positionenanzahl im Werkzeugwechsler | 8 |
| Maschinengewicht | 23000 kg |

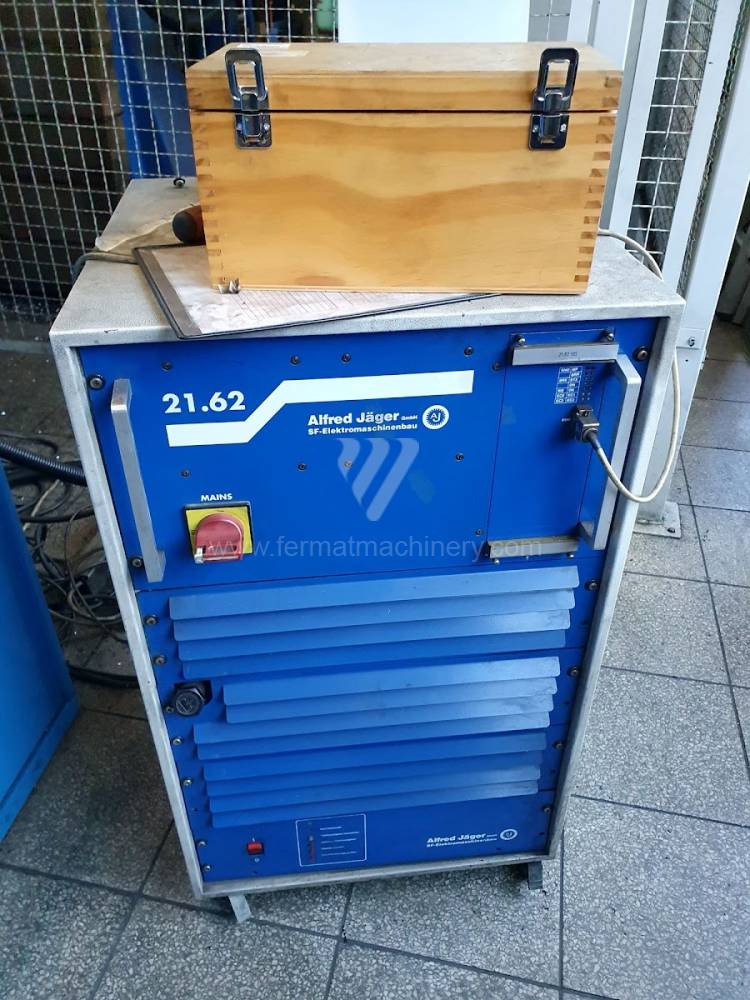

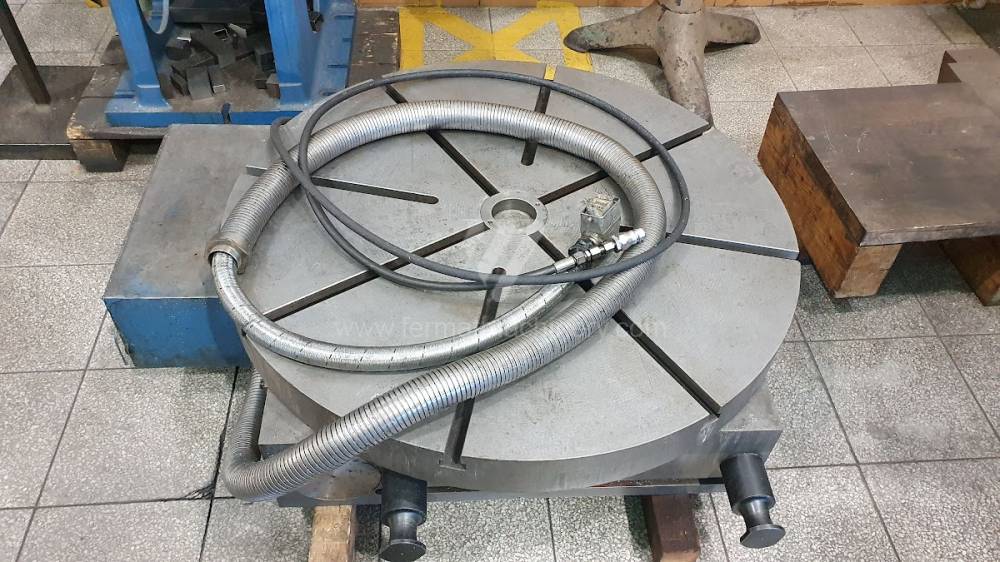

The machine is in good technical condition, with the possibility of testing under power.Accessories: electric spindle Jäger 30,000 rpm/7 kW, additional rotary table ISN 1000 CNC V.

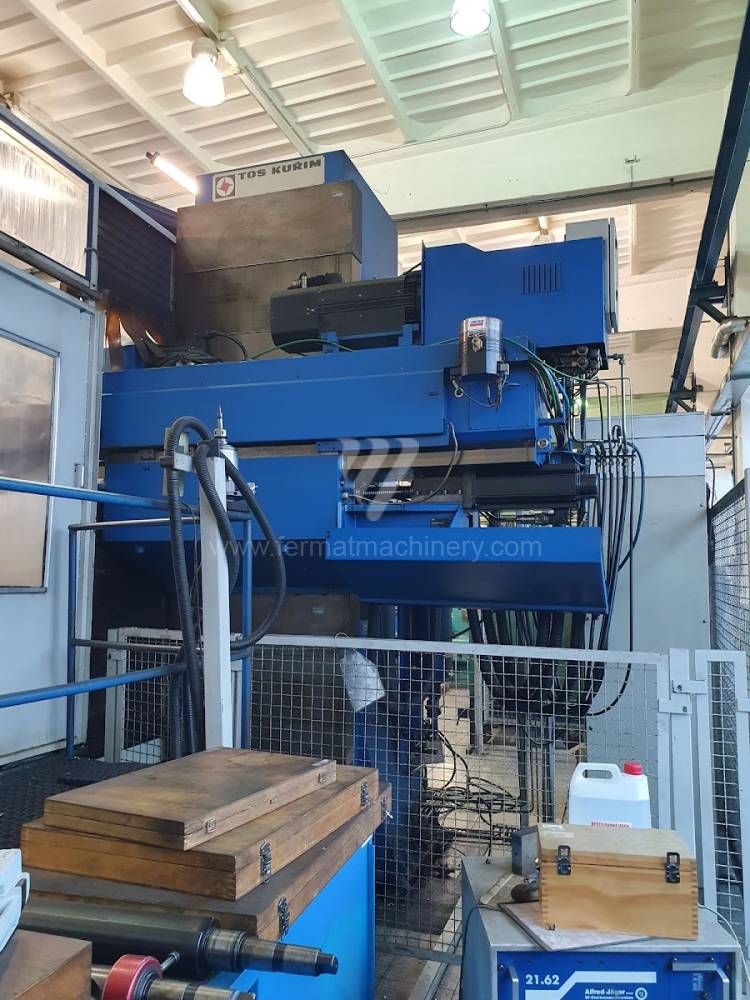

The TOS KUŘIM FSQ 125-S/A3 bed-type milling machine represents a robust solution for precise and high-performance milling of medium-sized workpieces. Thanks to its reliable Heidenhain control system, the machine is ideal for demanding metalworking operations requiring high machining rigidity and efficient tool management. This milling machine is primarily used in toolrooms and facilities focused on single-piece or small-series production, where users appreciate its versatility, easy programming, and stability of the entire metal machining process.
