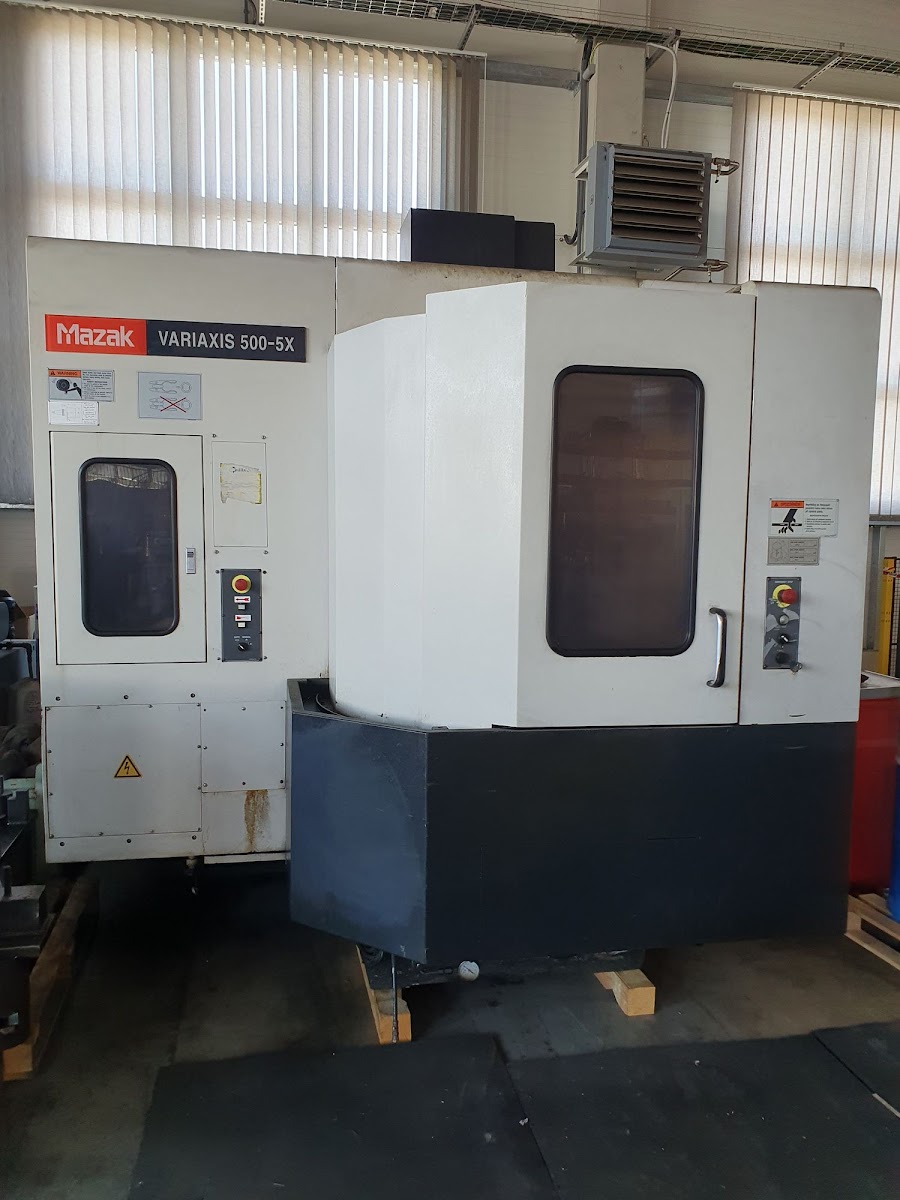

ProducerMAZAK
Year manufacture2005

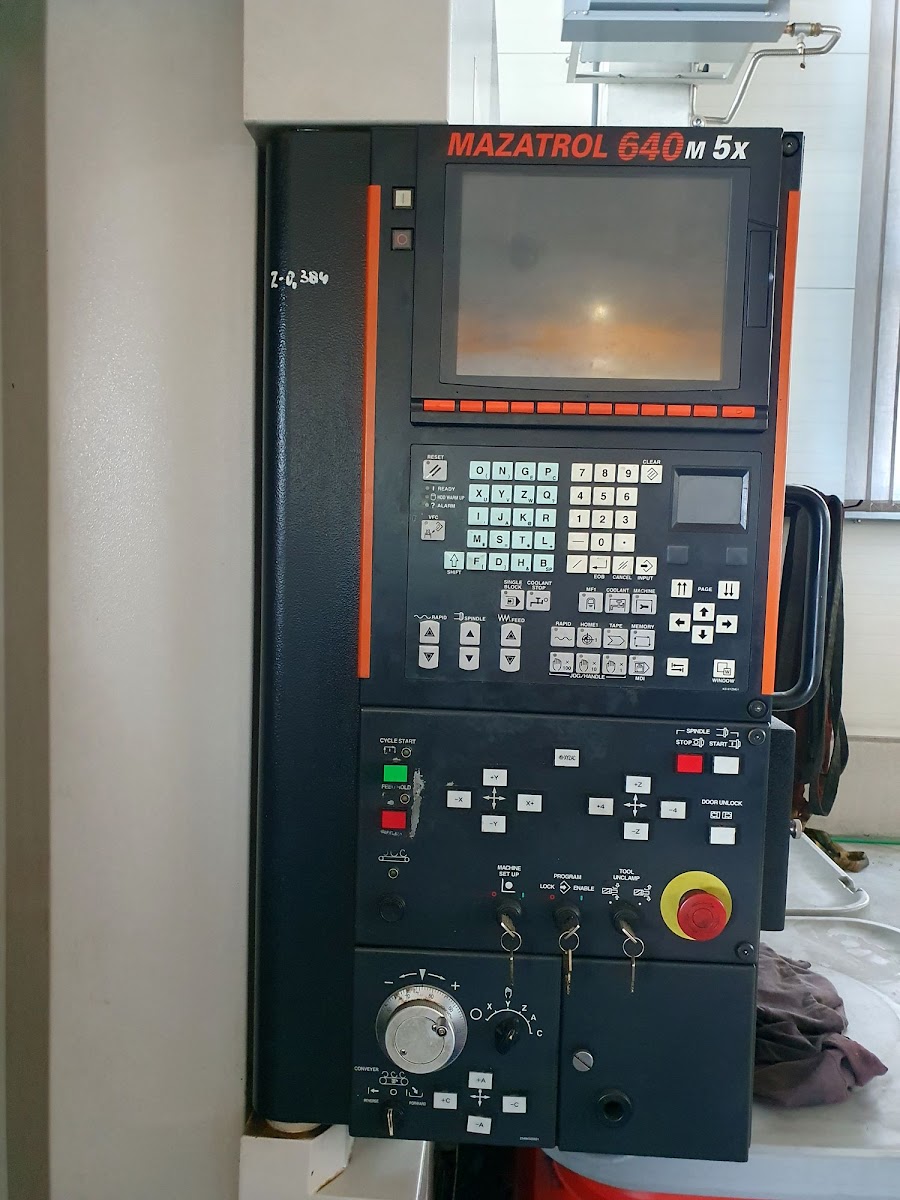

Control system MazatrolFusion 640 M
Clamping area of table400 x 400 mm
Travel X-axis510 mm
Travel Y-axis510 mm
Travel Z-axis460 mm
Spindle speed0 – 12000 /min
Number of driven axes5
Cooling through spindleYES
Pressure of cooling80 bar
Spindle taperISO 40
Axis C0 – 360°
Axis A-120 / +30°
Tool magazineYES
Number of positions in magazine60
Machine weight11700 kg
Number of pallets2
Machine dimensions L x W x H2805 × 2880 × 2900 mm

Control system Mazatrol Fusion 640 M
Travel X-axis 510 mm
Travel Y-axis 510 mm
Spindle speed 0 - 12000 /min.
Spindle taper ISO 40
Travel Z-axis 460 mm
Clamping area of table 400 x 400 mm
Number of driven axes 5

Dismantling and loading Dismantling and loading provided – fee €1,000
Transportation and installation Not included in price
Inspections By appoitment

Land: Czech Republic
