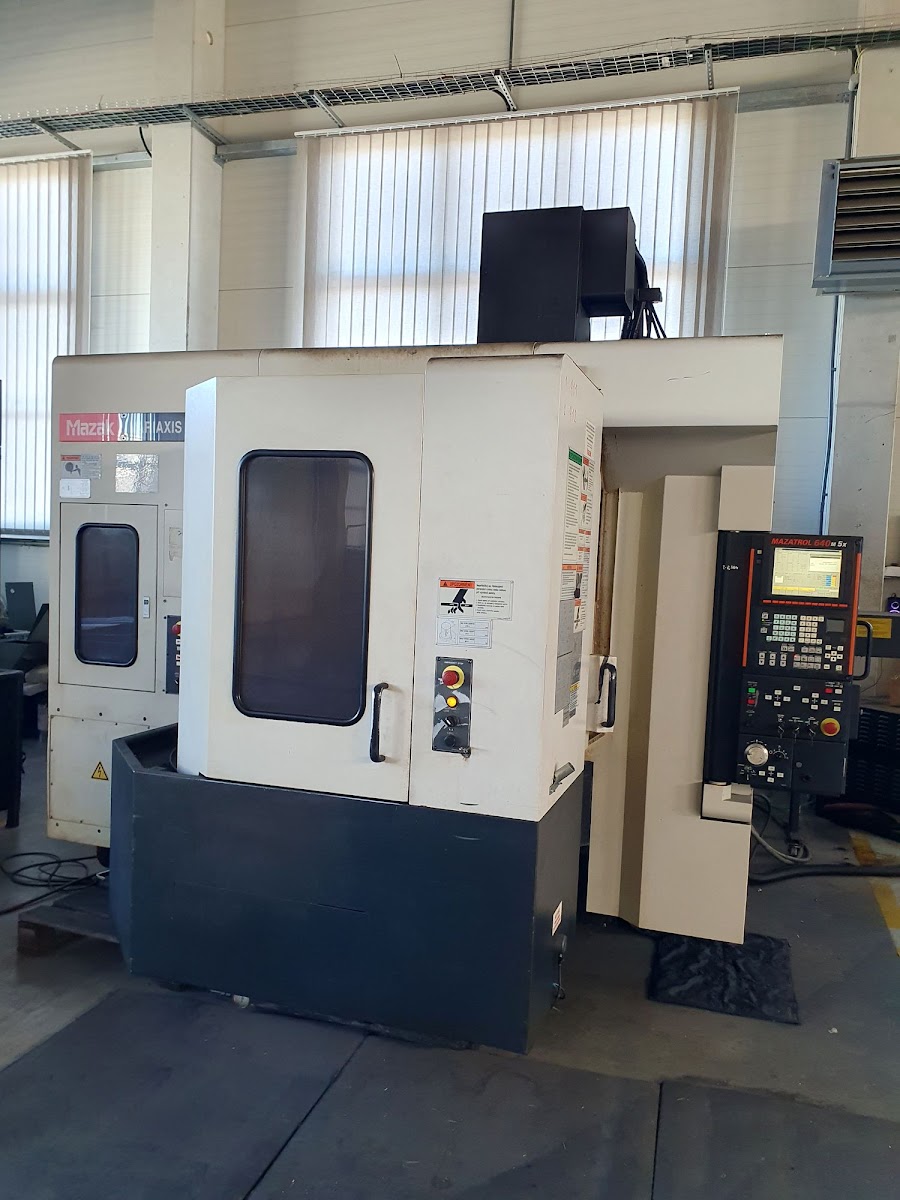

Producer | MAZAK |
Year manufacture | 2005 |

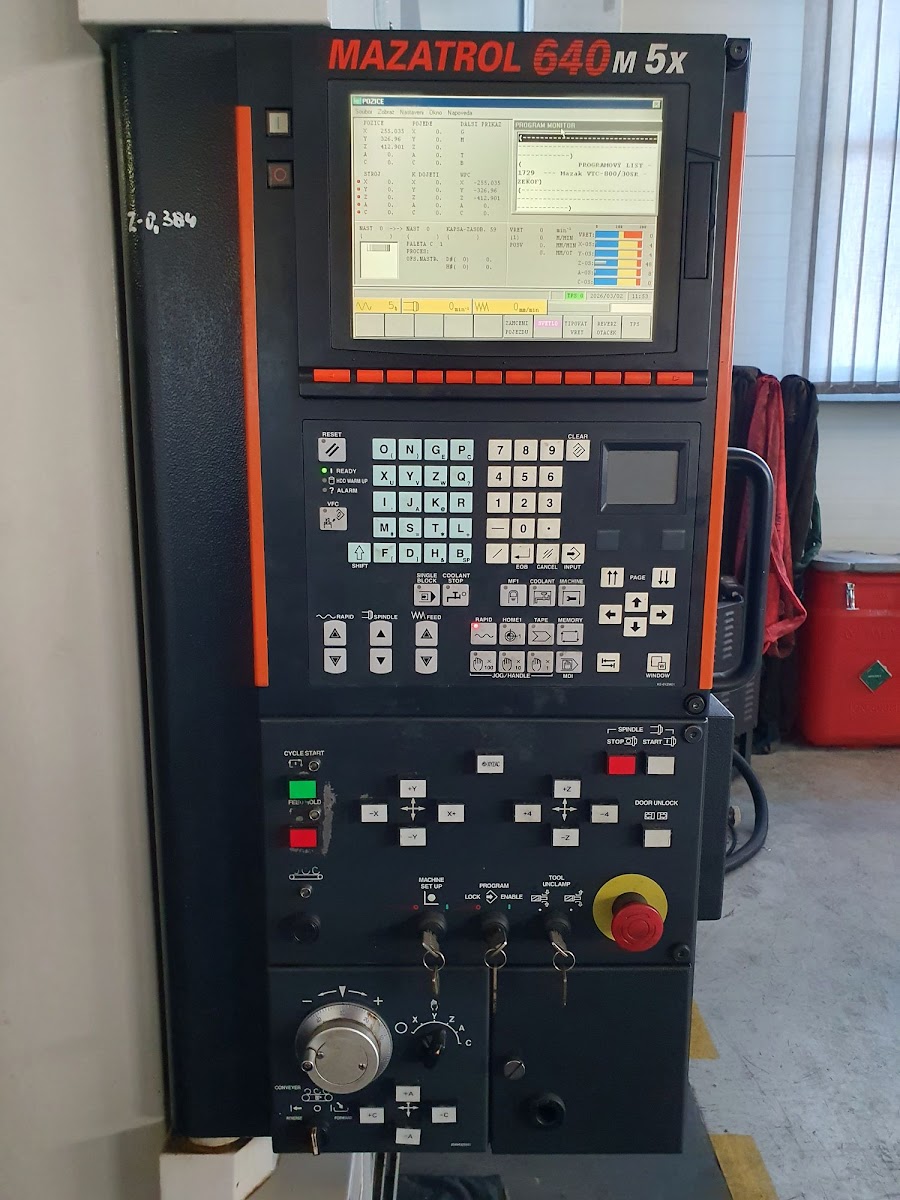

Control system Mazatrol | Fusion 640 M |

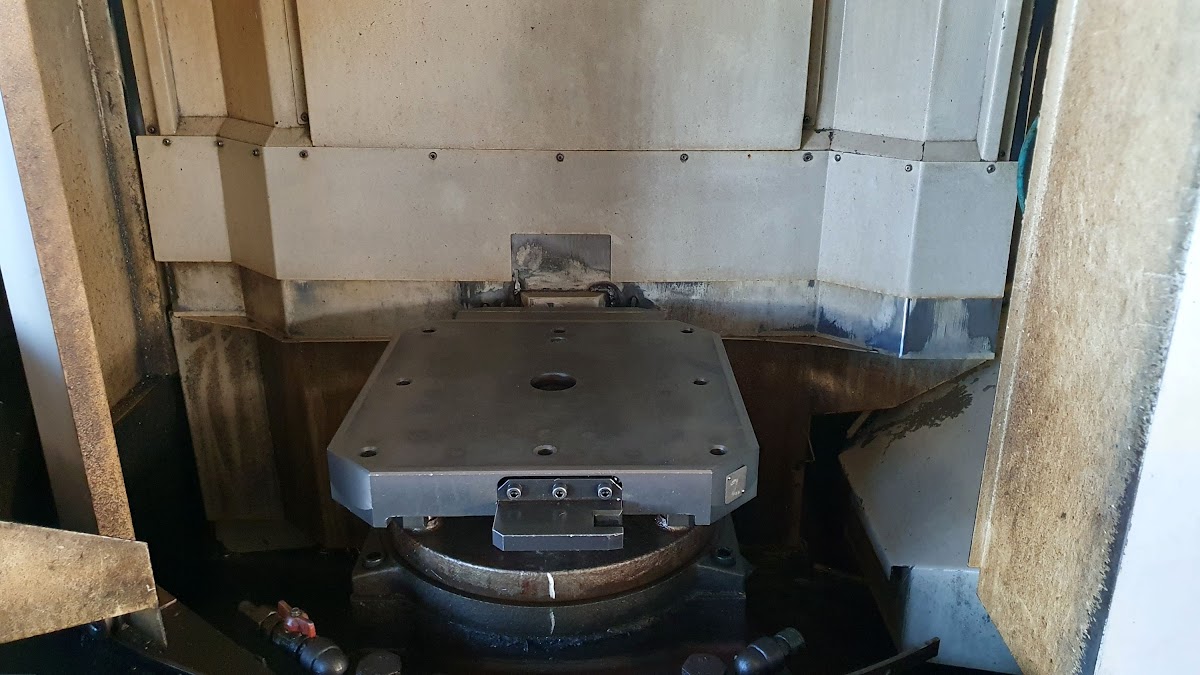

Clamping area of table | 400 x 400 mm |
Travel X-axis | 510 mm |
Travel Y-axis | 510 mm |
Travel Z-axis | 460 mm |
Spindle speed | 0 – 12000 /min |
Number of driven axes | 5 |
Cooling through spindle | YES |
Pressure of cooling | 80 bar |
Spindle taper | ISO 40 |
Axis C | 0 – 360° |
Axis A | -120 / +30° |

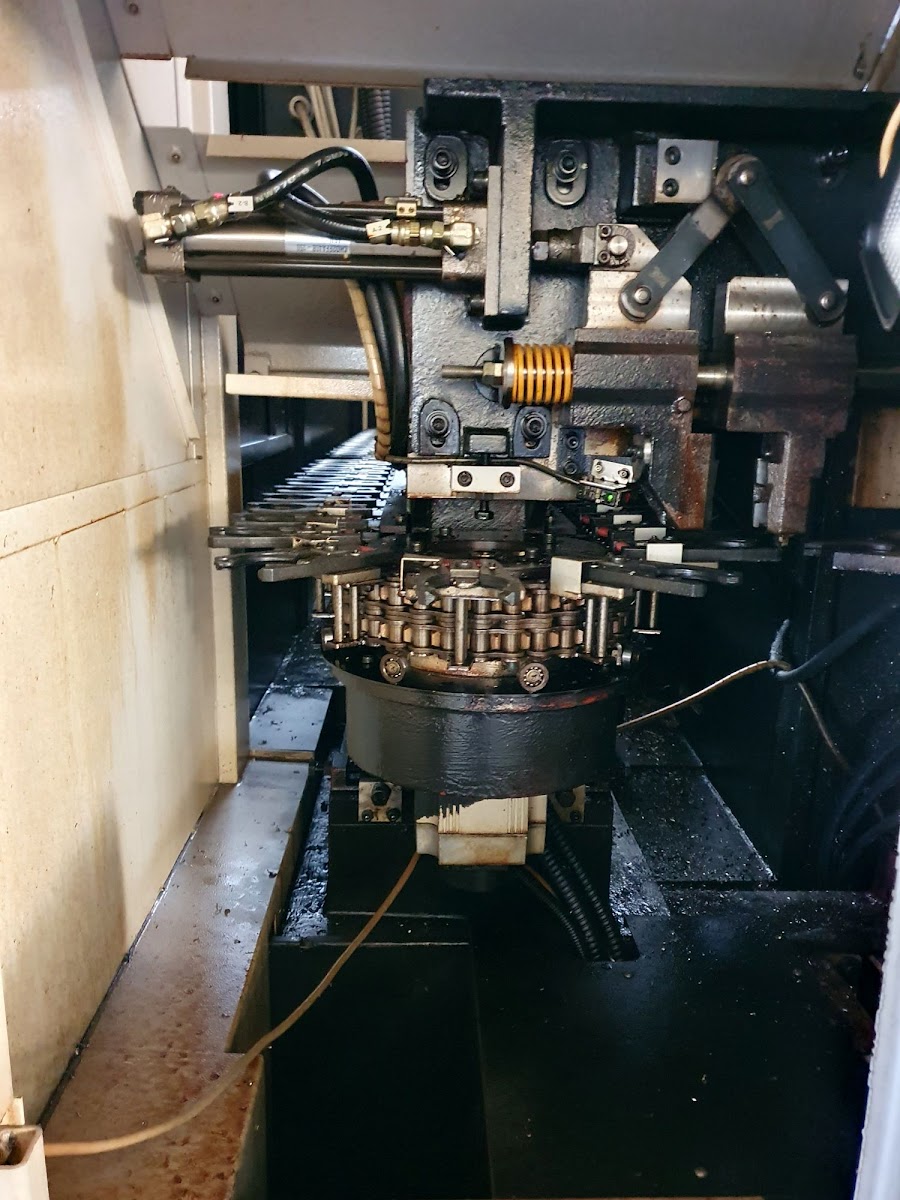

Tool magazine | YES |
Number of positions in magazine | 60 |
Machine weight | 11700 kg |
Number of pallets | 2 |
Machine dimensions L x W x H | 2805 × 2880 × 2900 mm |
Control system | Mazatrol Fusion 640 M |
Travel X-axis | 510 mm |
Travel Y-axis | 510 mm |
Spindle speed | 0 - 12000 /min. |
Spindle taper | ISO 40 |
Travel Z-axis | 460 mm |
Clamping area of table | 400 x 400 mm |
Number of driven axes | 5 |
Dismantling and loading | Dismantling and loading provided – fee €1,000 |
Transportation and installation | Not included in price |
Inspections | By appoitment |
