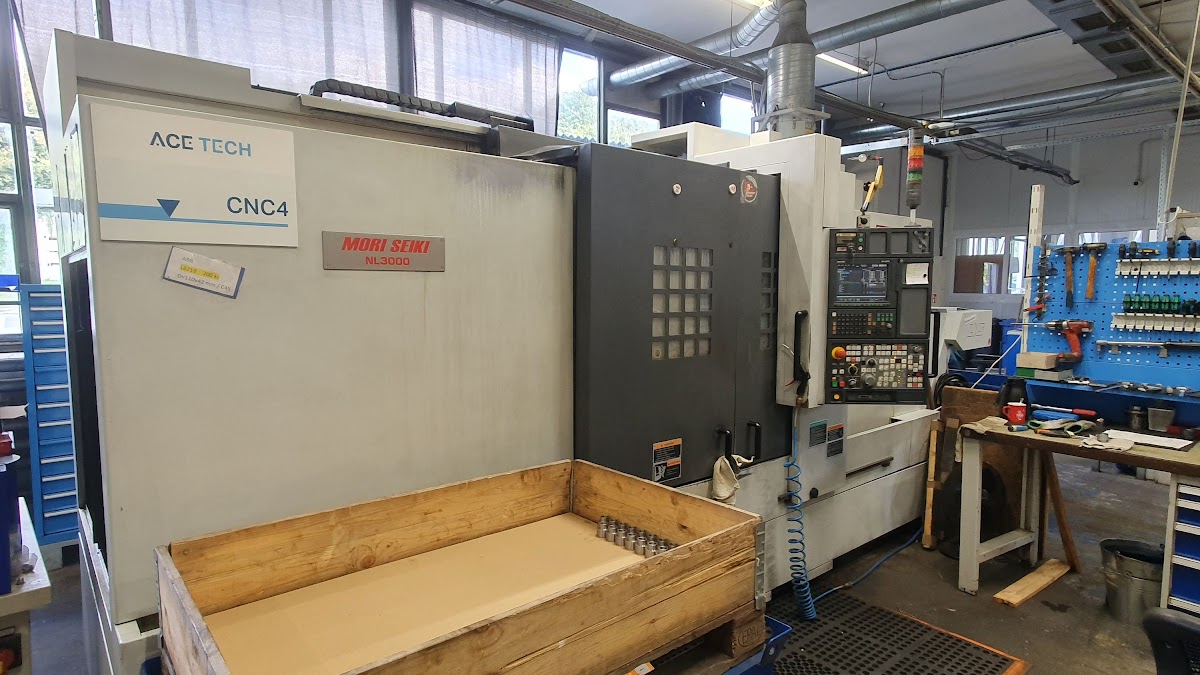

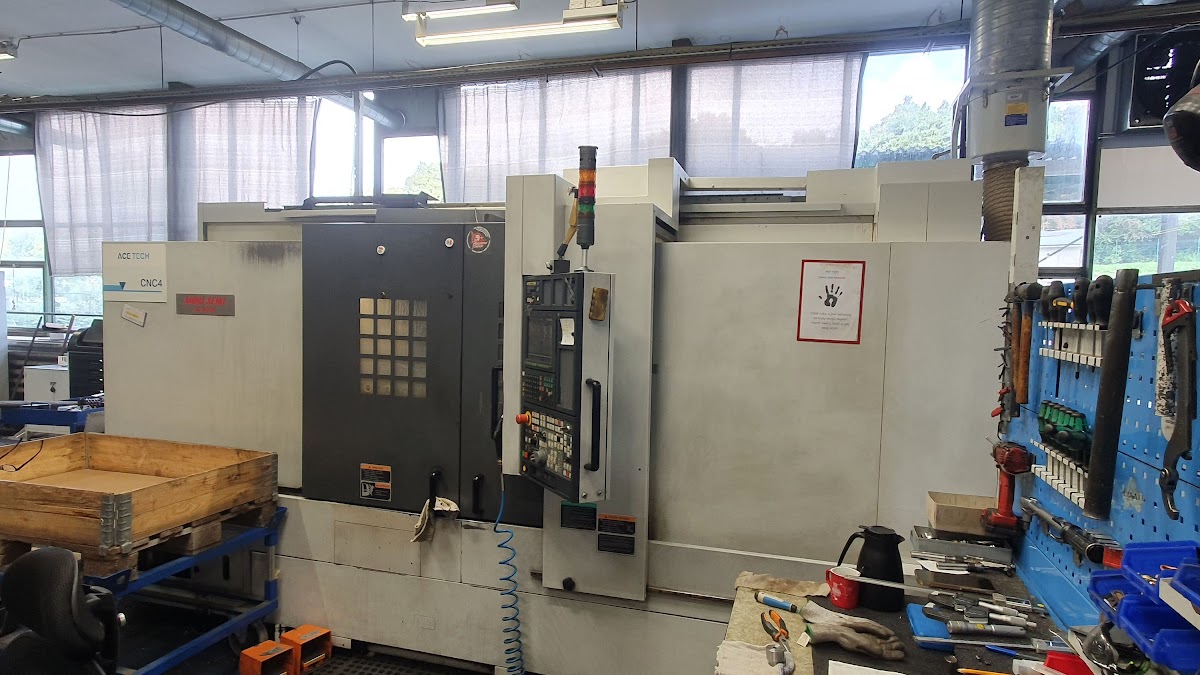

| Producer | MORI SEIKI |
|---|---|
| Year manufacture | 2008 |
| Control system MORI SEIKI | MSX-850 MAPS II |
| Turn table diameter | 430 mm |
| Turning length | 1260 mm |
| Sloping bed | Yes |
| Y axis | Yes |
| Travel Y-axis (lathe) | +/- 60 mm |
| Counters spindle | No |
| Spindle bore | 105 mm |
| Milling head | No |

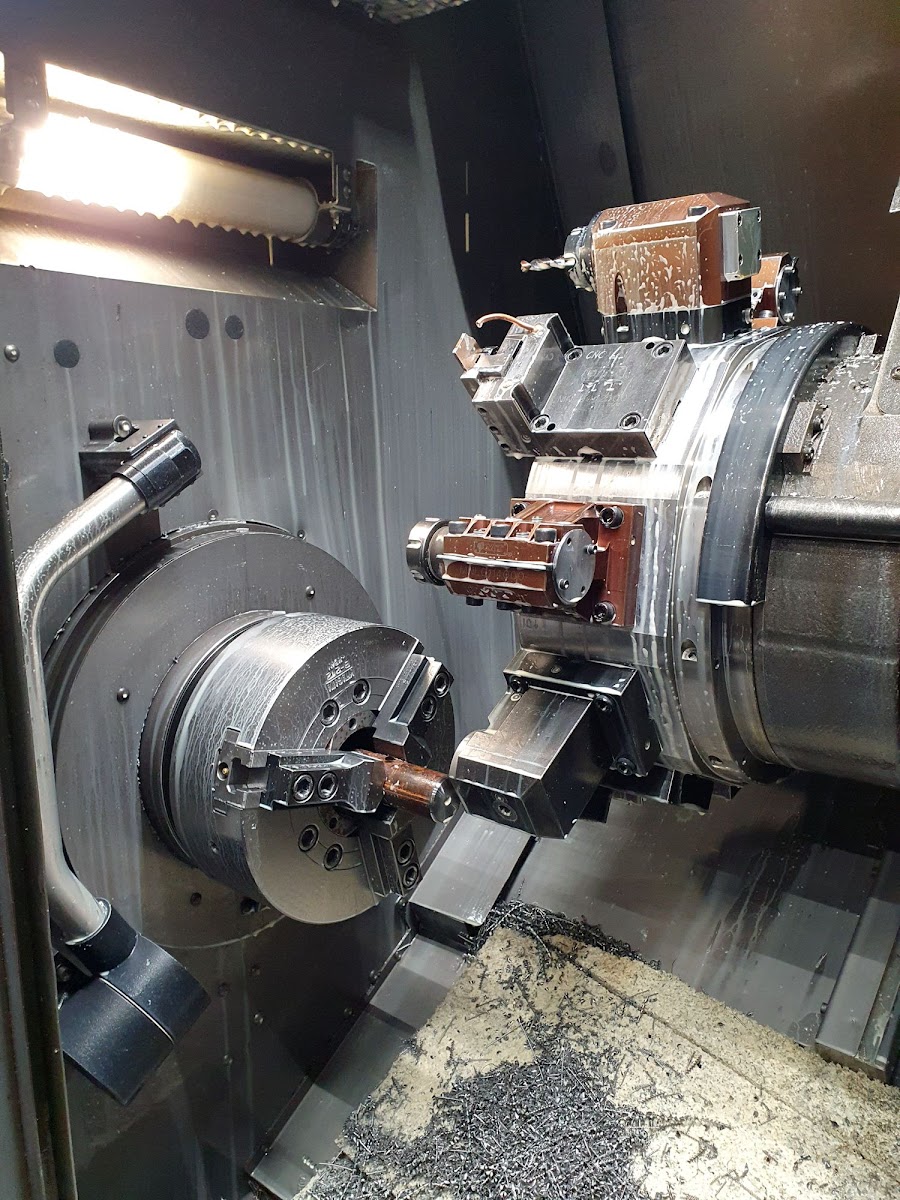

| Driven tools | Yes |
| Number of tool positions (driven) | 10 |
| Bar loader | No |
| Travel X-axis | 280 mm |
| Travel Z-axis | 1370 mm |
| Swing over bed | 995 mm |
| Swing over cross slide | 825 mm |
| Spindle speed | 1 – 3000 /min |
| Axis C | 0.001° |
| Power of driven tools | 5.5 kW |
| Main motor power | 25 / 30 kW |
| Max. torque of spindle | 1000 / 1300 Nm |
| Machine weight | 8100 kg |
| Machine dimensions (l × w × h) | 4532 × 2291 × 2390 mm |

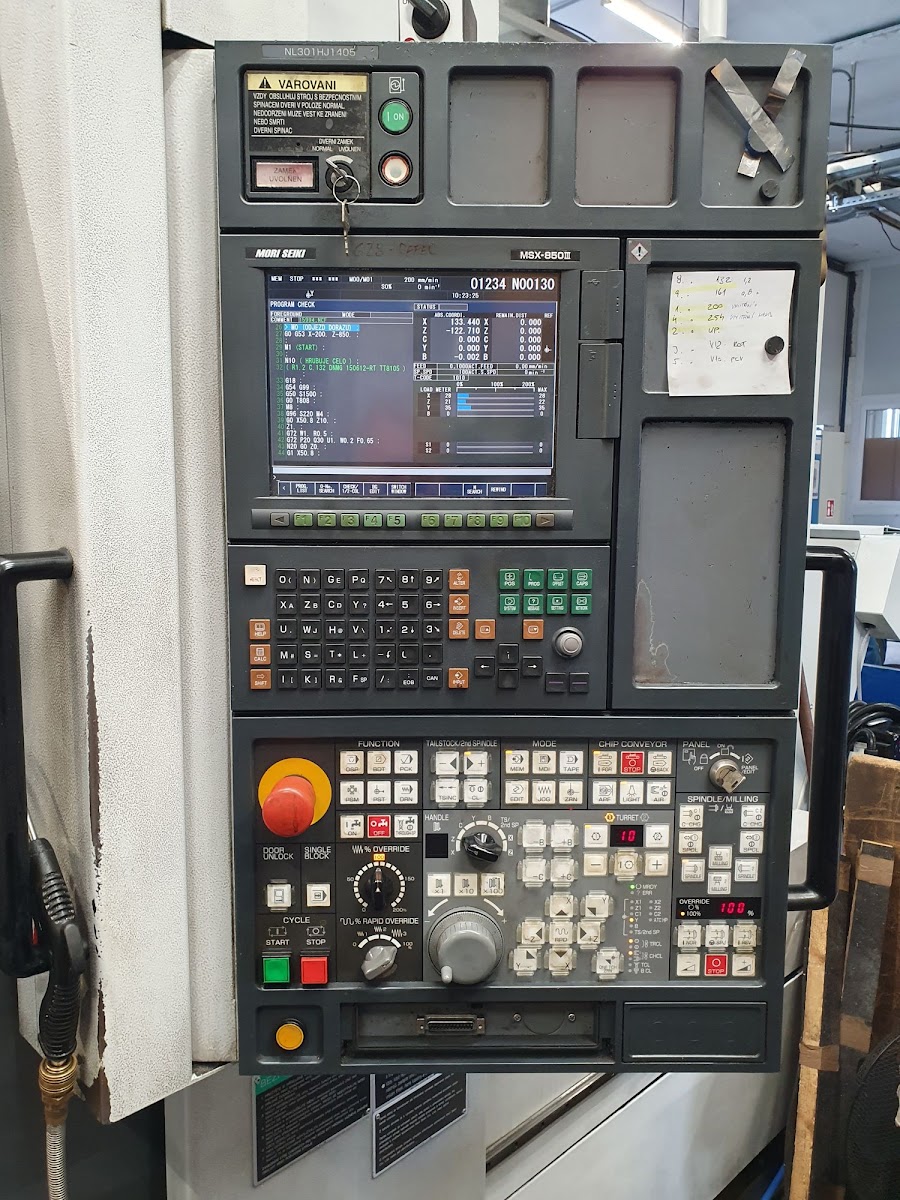

| Control system | MORI SEIKI MSX-850 MAPS II |
| Turn table diameter | 430 mm |
| Turning lenght | 1260 mm |
| Sloping bed | Yes |
| Spindle bore | 105 mm |

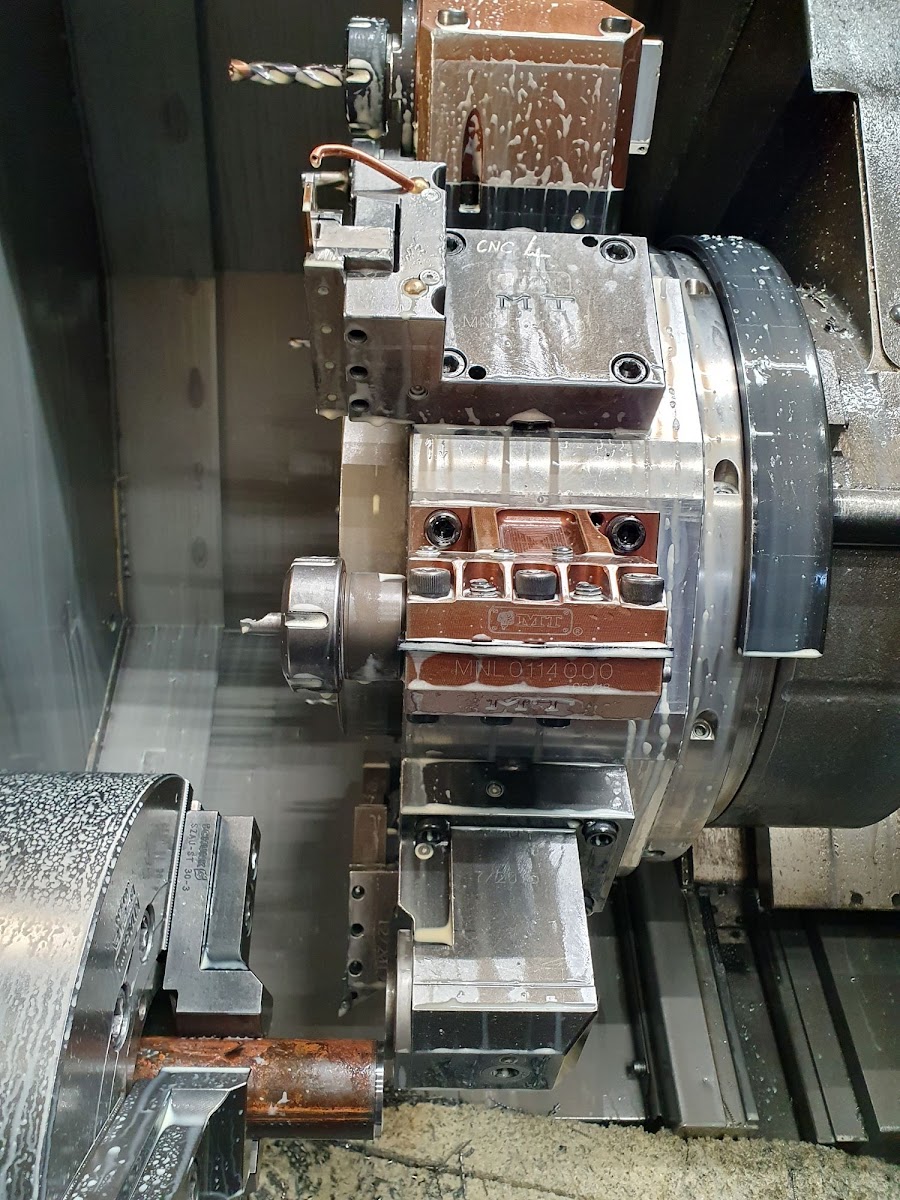

| Turret head | Yes |
| Dismantling and loading | Dismantling and loading provided – fee €1,000 |
| Transportation and installation | Not Included |
| Inspections | By appoitment |
| Paese: | Czech Republic |
| Indirizzo: | No street selected |
